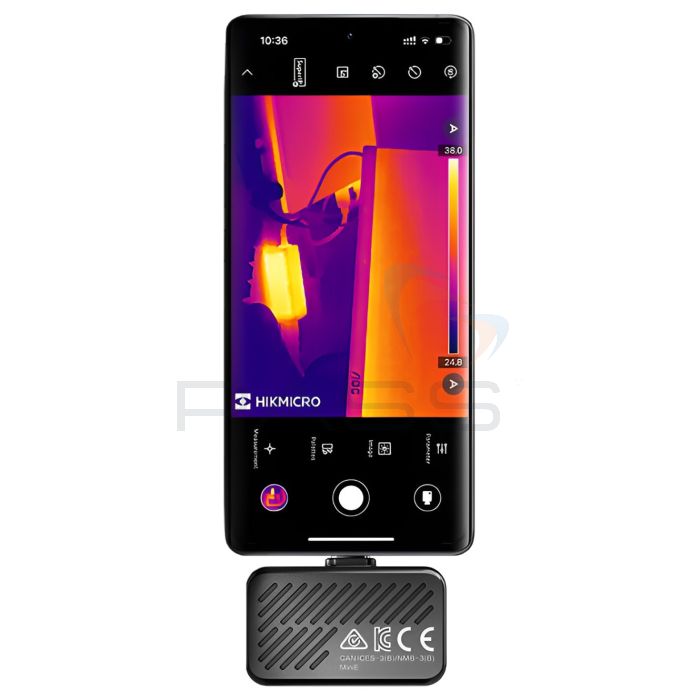

Hikmicro MiniE Infrared Phone Thermal Imager with Type-C (25Hz)

Hikmicro MiniE Infrared Phone Thermal Imager with phone

Mini size
Auto & manual rotation
Adjustable image settings

SKU

MINI-E

MPN

HM-TJ10-1ARF-MiniE(O-STD)

View All Thermal Imaging Cameras

Description Technical Info Reviews

The Hikmicro MiniE transforms your smartphone into a powerful thermal imaging tool. The MiniE has a sensitive VOx sensor (NETD < 50 mK), a 96 x 96 resolution, a wide temperature range (-20°C to 400°C), and ±2°C accuracy. The imager runs straight off your smartphone without a battery or charging.

It has video and image capture, custom and preset palettes, picture-in-picture mode, and intelligent screen rotation for smooth operation in any orientation. Paired with the HIKMICRO Viewer app, you can instantly annotate images, adjust settings, and generate reports. SuperIR technology improves clarity, reduces noise, and delivers finer edge detail.

Compatible with the latest iPhone 15/16 and Android devices, it weighs just 20g and slips easily into your pocket or toolbox.

Key Features

Thermal resolution: 96 x 96 (9, 216 pixels)
SuperIR image enhancement technology on live view and captured images
3-in-1: USB-C (iOS & Android), Lightning (Includes a Lightning to USB-C adapter)
NETD:<50 mK (@ 25 °C, F#=1.0)
Accuracy: ± 2 °C (-20 °C to 100 °C) ; ± 2 % (100 °C to 400 °C)
20 g Weight
Making your phone smarter with HIKMICRO infrared phone thermal imager
Premium performance, small package
Explore your world in thermal with high accuracy
Type-C port & lightning port
Super clear thermal image
Accurate temperature measurements
Ready for any job or just for fun
Small, easy to carry, and ready 24/7 for almost anything
Mini size
Battery-free
Auto & manual rotation
Adjustable image settings
Different colour palettes & image modes
Multiple professional settings
HIKMICRO Viewer app compatible

What's Included?

MiniE
USB-C Extension Adaptor
USB-C Extension Cord
Protective Case
Quick Start Guide

£98.95

£118.74 inc vat

60 Days Return

Technical Information

Specification

Infrared Image
IR Resolution	96 x 96 (9, 216 pixels)
SuperIR	Yes, on captured images and live view
NETD	<50 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 µm
Spectral Range	7.5 to 14 µm
Focal Length	1.35 mm
Field of View (FOV)	50° x 50°
Min. Focus Distance	0.1 m (0.33 ft)
Focus Mode	Focus Free
Image Display
Colour Palettes	White Hot, Black Hot, Rainbow, Ironbow, Sepia, Colour, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined, Custom Palette
Image Modes	Thermal, PIP
Measurement and Analysis
Object Temperature Range	Range -20°C to 150°C (-4° F to 302° F) Range 100°C to 400°C (212° F to 752°F)
Accuracy	Max (± 2°C/3.6° F, ± 2%), for ambient temperature 15°C to 35°C (59° F to 95° F) and object temperature above 0°C (32° F)
Measurement Tools	Centre Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line
Level and Span Mode	Auto/Manual
General
Power Consumption	310 mW
Interface	USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter)
Device Compatibility	iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices
Software Compatibility	HIKMICRO Viewer app for iOS and Android
Protection Level	IP40
Drop Test Height	1 m (3.28 ft)
Working Temperature Range	-10°C to 50°C (14° F to 122° F )
Storage Temperature Range	-20°C to 60°C (-4° F to 140° F )
Dimension	41.56 x 34.03 x 10.79 mm (1.64 x 1.34 x 0.42 in)
Weight	Approx. 20 g (0.044 lb)
