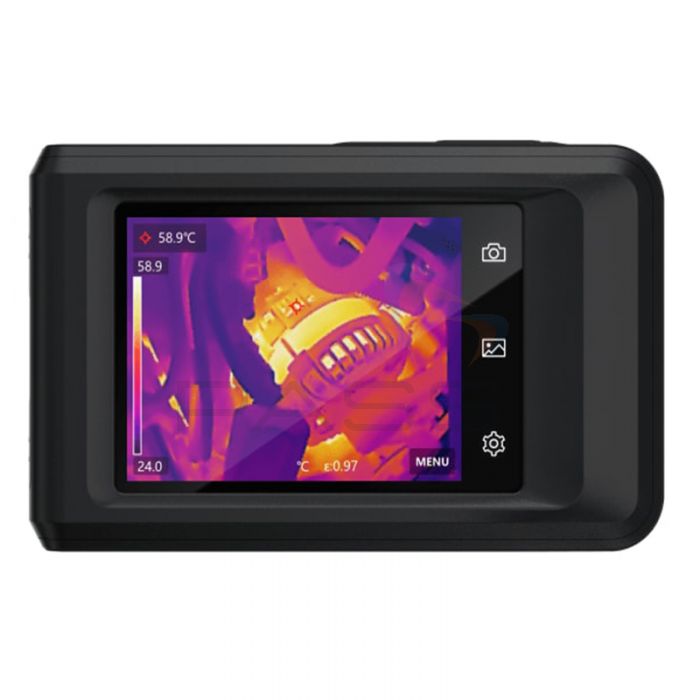

Hikmicro Pocket 2 Thermal Camera

Equipped with a 256x192px VOx thermal sensor, 8MP optical lens, -20°C to +400°C temperature range, and 3.5” LCD touchscreen, the Hikmicro Pocket 2 Thermal Camera is a portable, powerful infrared imager ideal for professionals. This high-performance, pocket-sized camera can be used for building inspections, and HVAC, electrical, and mechanical equipment maintenance. A 25Hz frame rate delivers smooth thermal imaging, while three level and span modes (manual, automatic, and 1-tap) can be used to alter the image contrast and highlight potential problems. Additionally, a built-in speaker and LED torch issue audio and visual alerts when high temperatures are detected. The integrated torch can also be used to work safely in dark or dim environments, while the Hikmicro Pocket 2 Thermal Camera’s rugged, IP54-rated, 2m-drop-tested design makes it suitable for use in industrial environments. Finally, images and footage can be saved to the Hikmicro Pocket 2 Thermal Camera’s integrated 16GB memory or they can be shared to a smartphone/tablet with the Hikmicro Viewer App installed via the camera’s built-in Wi-Fi.

Hikmicro Pocket 2 Thermal Camera Key Features

  • A portable, high-performance thermal camera for professionals
  • 256x192px VOx thermal sensor
  • 8MP optical lens
  • Temperature range: -20°C to +400°C
  • 3.5” LCD touchscreen
  • Ideal for building inspections as well as HVAC, electrical, and mechanical equipment maintenance
  • Frame rate: 25Hz
  • Built-in Wi-Fi
  • Share images in real-time to a smartphone/tablet with the Hikmicro Viewer App installed
  • Analyse images and generate reports using Hikmicro’s Viewer App
  • Create reports with Hikmicro’s Analyser PC Software
  • Built-in 16GB memory
  • Three level and span modes (manual, automatic, and 1-tap)
  • Built-in speaker
  • LED torch
  • IP54-rated
  • 2m drop-tested
  • A professional, pocket-sized, powerful thermal imager

What’s Included?

  • Hikmicro Pocket 2 Thermal Camera
  • Pouch
  • Wrist Strap
  • USB Cable
  • Power Supply
  • Quick Start Guide
  • Calibration Certificate

Hikmicro Pocket 2 Thermal Camera Technical Specifications

Thermal Module Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
IR Resolution 256 x 192 (49,152 pixels)
NETD < 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0
Focal Length 3.5 mm
FOV (Field of View) 50.0 °H × 37.2 °V
Image Frequency 25 Hz
Focus Fixed
IFOV (Spatial Resolution) 3.43 mrad
Optical Module Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
Image Display Display 640 × 480 Resolution, 3.5’’ LCD Touch Screen
Colour Palettes 7: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain
Image Modes Thermal/Optical/Fusion/PIP
Measurement and Analysis Object Temperature Range -20 °C to 400 °C ( -4 °F to 752 °F )
Accuracy Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F)
and object temperature above 0°C (32°F)
Measurement Presets Center Spot, Hot Spot, Cold Spot, Off
High-Temperature Alarm Audible/visual alarm of above temperature threshold, User-defined
temperature threshold
Storage Storage Media EMMC (16 GB)
Image Storage Capacity Approx. 60,000 Images
Image File Format Radiometric.JPEG with Measurement Data Included
Text Note Max. 200 Characters
Video Storage Capacity Approx. 10 h
Video File Format Standard MP4 Non-radiometric video
Functions  LED Light Yes
Microphone Yes
Buzzer Yes
Wi-Fi 802.11 b/g/n (2.4 GHz, 5 GHz)
Bluetooth Bluetooth 4.2
Connect with APP Yes, HIKMICRO Viewer
Level/Span Auto/Manual/1-Tap Touch Screen
Power System Battery Operating Time 4 Hours Continuous Running
General Menu Language 21 Languages
Protection Level IP54
Drop Test Height 2 m (6.56 ft)
Weight Approx. 218 g (0.48 lb)
Hikmicro Pocket 2 Thermal Camera - Datasheet Datasheets Hikmicro Pocket 2 Thermal Camera - Quick Start Guide Manuals & Guides Hikmicro Pocket 2 Thermal Camera - Specification Sheet Technical Specifications

Reviews

Additional Information
SKU HIK-POCKET2
Manufacturer Part Code POCKET2
