Hikmicro SP60H HandHeld Thermography Camera (30Hz)
- SuperIR
- HIKMICRO Analyzer
- L8, L12, L25, & L50 lenses
SKU
SP60H-LXX
The Hikmicro SP60H has a 640 × 480 detector and SuperIR technology, which enhances images to 1280 × 960 resolution. Its rugged IP54 housing, 5" touch LCD with auto brightness, and 1024 × 768 OLED viewfinder make it equally capable indoors or outdoors, even under bright sunlight. A 90° rotating screen and 180° lens allow flexible viewing from hard-to-reach angles.
Fast focusing is supported through four modes – manual, auto, continuous, and laser-assisted. A built-in laser distance meter delivers distance and area measurement up to 50m, and temperature measurement ranges extend up to 2200°C.
Data capture, voice and text annotations, GPS tagging, and compass orientation, radiometric images and video can be stored for later analysis using HIKMICRO Analyser software. The interchangeable battery system (two Li-ion batteries with a dual-bay charger) provides up to 8 hours of continuous operation.
Lens Options (Models):
- SP60H-L8 – Wide-angle, 77.4mm FOV
- SP60H-L12 – General purpose, 51.4mm FOV
- SP60H-L25 – Narrower FOV, 25.6mm
- SP60H-L50 – Telephoto, 12.6mm
- SP60H-L8/25 – Dual-lens option (wide + medium)
- SP60H-L12/25 – Dual-lens option (standard + medium)
- SP60H-L25/50 – Dual-lens option (medium + telephoto)
- SP60H-L12/25/50 – Triple-lens set
Whether you need wide coverage, detailed close-ups, or long-distance thermography, the SP60H range adapts to your application.
| Lenses & Field of View | ||||
|---|---|---|---|---|
| L8 (FOV: 77.4mm) |
L12 (FOV: 51.4mm) |
L25 (FOV: 25.6 mm) |
L50 (FOV: 12.6mm) |
|
| SP60H-L8 | ✔ | |||
| SP60H-L12 | ✔ | |||
| SP60H-L50 | ✔ | |||
| SP60H-L8/25 | ✔ | ✔ | ||
| SP60H-L12/25 | ✔ | ✔ | ||
| SP60H-L25/50 | ✔ | ✔ | ||
| SP60H-L12/25/50 | ✔ | ✔ | ✔ | |
What's Included?
- Thermal Imager
- Hand Strap
- Neck Strap
- Rubber Viewfinder Cap
- Camera Lens Cap
- 2 x Dismountable and Rechargeable Li-ion Batteries
- Power Supply for Battery Charger
- Two-bay Battery Charger
- International Use Plugs(US/EU/UK/AU) for Power Supply
- USB 2.0 A to USB Type-C Cable
- Micro HDMI to HDMI Cable
- Hard Carrying Case
- Calibration Certificate
- Quick Start Guide
- 64GB Micro SD Card
Technical Information
Specification
| Specification | ||
|---|---|---|
| Infrared Image | IR Resolution | 640 x 480 (307,200 pixels) |
| NETD | < 30 mK (@ 25 °C, F#=1.0) | |
| Image Frequency | 30 Hz | |
| Detector Pitch | 17 µm | |
| Spectral Range | 7.5 to 14 µm | |
| Focal Length | L8: 77.4 mm L12: 51.4 mm L25: 25.6 mm L50: 12.6 mm |
|
| F-number | L8: F1.2 L12: F1.1 L25: F1.0 L50: F1.0 |
|
| Field of View (FOV) | L8: 8° x 6° L12: 12° x 9° L25: 24.8° × 18.7° L50: 50° x 37.3° |
|
| Spatial Resolution (IFOV) | L8: 0.22 mrad L12: 0.33 mrad L25: 0.66 mrad L50: 1.35 mrad |
|
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | |
| Focus Speed | Approx. 1 second | |
| Min. Focus Distance | L8: 2 m (6.56 ft) L12: 1 m (3.3 ft) L25: 0.15 m (0.49 ft) L50: 0.2 m (0.65 ft) |
|
| SuperIR | 1280 x 960 (1,228,800 pixels) | |
| Image Display | Visual Camera | 3264 x 2448 (8 MP) |
| Display | 1280 x 720 Resolution, 5” LCD Touch Screen | |
| Screen Brightness | Manual/Auto | |
| Viewfinder | 1024 x 768 pixels OLED | |
| Digital Zoom | 1.x to 12.x continuous | |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending | |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | |
| Focus Mode Palette | Above/Below/Interval | |
| Color Alarm | Above/Below/Interval/Insulation | |
| Measurement and Analysis | Object Temperature Range | -20°C to 2200°C (-4°F to 3992°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%) | |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 10 rectangles | |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen | |
| Inspection Route | Yes | |
| Data Storage and Communication | Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | Approx. 60,000 Images | |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters | |
| Video Storage Capacity | Approx. 64 hours | |
| Video File Format | MP4 video and radiometric video | |
| General | Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 | |
| USB Interface | USB Type-C | |
| HDMI Interface | HDMI-D | |
| LED Light | Yes | |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | |
| Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). | |
| GPS & Compass | Yes | |
| Battery Type | Interchangeable and rechargeable Li-ion battery | |
| Battery Operating Time | Approx. 4 hours | |
| Battery Charging Time | Approx. 2.5 hours fully charged | |
| Power Saving Mode | Yes | |
| Programmable Buttons | 2 | |
| Protection Level | IP54, IEC 60529 | |
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 | |
| Safety | IEC 61010-1 | |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 | |
| Vibration | 2 g, IEC 60068-2-6 | |
| Shock | 25 g, IEC 60068-2-27 | |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122 °F) | |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) | |
| Relative Humidity | < 95% non-condensing | |
| Weight | Approx. 1481 g (3.27 lb) | |

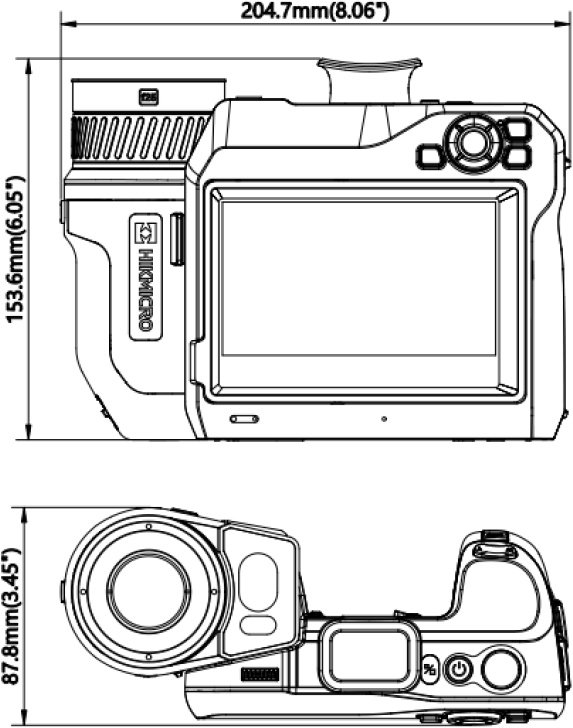

| Dimension | 204.7 x 153.6 x 87.8 mm (8.06 x 6.05 x 3.45 in) | |
| Tripod Mounting | UNC ¼"-20 | |
