Hikvision DS-2TD2636B DeepinView Bullet Body Temp Thermal Cameras

SKU
DS-2TD2636B
Rating:
0%
(0)
Call For Pricing

We require additional information before you purchase this product

or Call 01642 265 428 to discuss product options

Free Aftersales Support

Advice and Technical Support from a Hikvision Official Partner - Included in the Price

As an official partner, our Level 1 trained thermographers will give you the best support and correct advice.

6 Bundle Deals Available...

The Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras are visual-light and thermographic imagers specifically designed for screening individuals for EST (Elevated Skin Temperature) in crowded, indoor environments such as schools, airports and hospitals. They are part of Hikvision's series of EBT Thermal Cameras; please see the video below for an overview of this range.

There are three versions of the Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Camera available which differ in regards to the size of their lenses and subsequently their fields-of-view (FOV); please see the table below for more details.

SKU Lens Size FOV
DS-2TD2636B-10/P 9.7mm 37.5° × 28.5° (H × V)
DS-2TD2636B-13/P 13mm 28,8° × 21.6° (H × V)
DS-2TD2636B-15/P 15mm 24.5° × 18.5° (H × V)



The Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras have a high-performance sensor, a 384 x 288px IR resolution, a 4MP optical resolution, and a 30°C to 45°C temperature range. These cameras are able to conduct real-time, non-contact temperature measurements to a ±0.5°C accuracy. Non-contact temperature measurements ensure that both parties are protected during screening.

The Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras are also equipped with a selection of functions designed to improve the speed and precision with which persons with possible EBT are identified. The Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras include:

  • 3D DNR Image Detail Enhancement function: overlays the visual image onto the thermal image to improve the picture detail
  • Alarm function: alerts the user when out-of-range temperatures are measured
  • Picture-in-Picture mode: allows the user to focus on a particular area of the image without losing the overall FOV

The Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras are intended for indoor use. Their fast response time and accuracy means that people in areas with high footfalls can be screened efficiently and precisely. Please note that while the Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras are NOT diagnostic tools they can be used alongside medical equipment and procedures to restrict the potential spread of illness by identifying those with possible EST and who, therefore, may require further virus-/infection-specific screening. Please see the following videos for a brief demonstration of how to set up and use these cameras.

The Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras are precise, practical and simple-to-use thermal and visual-light cameras optimised for detecting EBT.

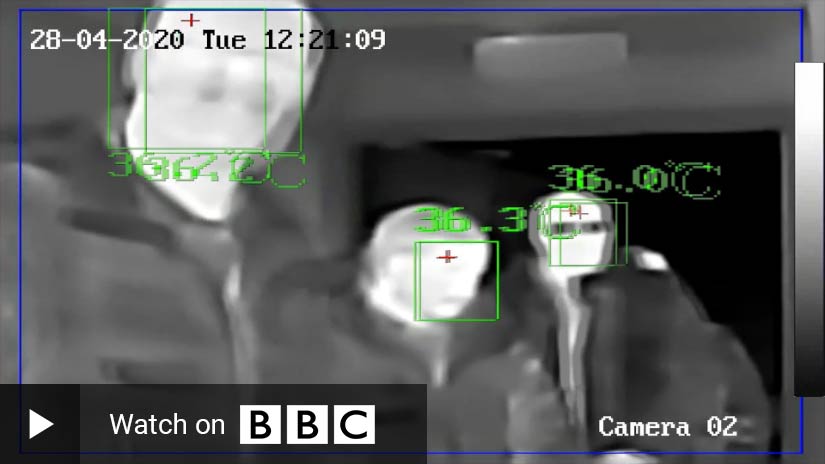

Hikvision Skin Temperature Screening Thermal Imaging Cameras were featured in the BBC News report: Will thermal cameras help to end the lockdown?

BBC News: Will thermal cameras help to end the lockdown?

Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras Key Features

  • Visual-light and thermographic imagers specifically designed for screening individuals for EBT in crowded, indoor environments
  • Suitable for use in schools, airports and hospitals.
  • Three models available with different lens sizes and FOVs
  • High-performance sensor
  • 384 x 288px IR resolution
  • 4MP optical resolution
  • Temperature range: 30°C to 45°C
  • Accuracy: ±0.5°C
  • Real-time, non-contact temperature measurements
  • Non-contact temperature measurements protect both parties during screening
  • 3D DNR Image Detail Enhancement function
  • Alarm function
  • Picture-in-Picture mode
  • Intended for indoor use
  • Screen people in areas with high footfalls efficiently and precisely
  • Please note these cameras are NOT diagnostic tools
  • Use alongside medical equipment and procedures to identifying those with possible EBT and who may require further virus-/infection-specific screening
  • Precise, practical and simple-to-use thermal and visual-light cameras optimised for detecting EBT

What’s Included?

  • Your Choice of Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Camera

Kit Options

The Hikvision DS-2TD2636B DeepinView Body Temp Bullet Thermal Cameras are also available as part of Solutions and Pro Solutions Kits. The table below outlines the kits available.

SKU Name Items Included
DS-2TD2636B-10/P-KIT1 Hikvision DS-2TD2636B-10/P High-Res Body Temp Thermal Camera Solutions Kit
  • Hikvision DS-2TD2636B-10/P High-Res Body Temp Bullet Thermal Camera - 9.7mm Lens
  • Hikvision DS-29072 UN ¼”-20 Tripod
  • Hikvision DS-2902ZJ Tripod Adapter
  • Hikvision DS-3E0109P-E(C) 4-Port 100Mbps Long-range Unmanaged POE Switch
  • 2x PoE Cables
  • FREE Hikvision iVMS-4200 Client Software
  • 2x 'Stay 2m Away' Floor Sticker (300mm x 300mm)
  • 1x 'Please Keep a Safe Distance of 2m' Tape Roll - 33m
DS-2TD2636B-13/P-KIT1 Hikvision DS-2TD2636B-13/P High-Res Body Temp Thermal Camera Solutions Kit
  • Hikvision DS-2TD2636B-13/P High-Res Body Temp Bullet Thermal Camera - 13mm Lens
  • Hikvision DS-29072 UN ¼”-20 Tripod
  • Hikvision DS-2902ZJ Tripod Adapter
  • Hikvision DS-3E0109P-E(C) 4-Port 100Mbps Long-range Unmanaged POE Switch
  • 2x PoE Cables
  • FREE Hikvision iVMS-4200 Client Software
  • 2x 'Stay 2m Away' Floor Sticker (300mm x 300mm)
  • 1x 'Please Keep a Safe Distance of 2m' Tape Roll - 33m
DS-2TD2636B-15/P-KIT1 Hikvision DS-2TD2636B-15/P High-Res Body Temp Thermal Camera Solutions Kit
  • Hikvision DS-2TD2636B-15/P High-Res Body Temp Bullet Thermal Camera - 15mm Lens
  • Hikvision DS-29072 UN ¼”-20 Tripod
  • Hikvision DS-2902ZJ Tripod Adapter
  • Hikvision DS-3E0109P-E(C) 4-Port 100Mbps Long-range Unmanaged POE Switch
  • 2x PoE Cables
  • FREE Hikvision iVMS-4200 Client Software
  • 2x 'Stay 2m Away' Floor Sticker (300mm x 300mm)
  • 1x 'Please Keep a Safe Distance of 2m' Tape Roll - 33m
DS-2TD2636B-10/P-KIT Hikvision DS-2TD2636B-10/P High-Res Body Temp Thermal Camera Pro Solutions Kit
  • Hikvision DS-2TD2636B-10/P High-Res Body Temp Bullet Thermal Camera - 9.7mm Lens
  • Hikvision DS-2TE127-G4A Black Body
  • 2x Hikvision DS-29072 UN ¼”-20 Tripods
  • Hikvision DS-2902ZJ Tripod Adapter
  • Hikvision DS-3E0109P-E(C) 4-Port 100Mbps Long-range Unmanaged POE Switch
  • Hikvision DS-D5022FN 21.5” Monitor VGA/ HDMI Input
  • Hikvision DS-7608NI-12/8P 8 Channel NVR
  • FREE Hikvision iVMS-4200 Client Software
  • 2x PoE Cables
  • 2x 'Stay 2m Away' Floor Sticker (300mm x 300mm)
  • 1x 'Please Keep a Safe Distance of 2m' Tape Roll - 33m
DS-2TD2636B-13/P-KIT Hikvision DS-2TD2636B-13/P High-Res Body Temp Thermal Camera Pro Solutions Kit
  • Hikvision DS-2TD2636B-13/P High-Res Body Temp Bullet Thermal Camera - 13mm Lens
  • Hikvision DS-2TE127-G4A Black Body
  • 2x Hikvision DS-29072 UN ¼”-20 Tripods
  • Hikvision DS-2902ZJ Tripod Adapter
  • Hikvision DS-3E0109P-E(C) 4-Port 100Mbps Long-range Unmanaged POE Switch
  • Hikvision DS-D5022FN 21.5” Monitor VGA/ HDMI Input
  • Hikvision DS-7608NI-12/8P 8 Channel NVR
  • FREE Hikvision iVMS-4200 Client Software
  • 2x PoE Cables
  • 2x 'Stay 2m Away' Floor Sticker (300mm x 300mm)
  • 1x 'Please Keep a Safe Distance of 2m' Tape Roll - 33m
DS-2TD2636B-15/P-KIT Hikvision DS-2TD2636B-15/P High-Res Body Temp Thermal Camera Pro Solutions Kit
  • Hikvision DS-2TD2636B-15/P High-Res Body Temp Bullet Thermal Camera - 15mm Lens
  • Hikvision DS-2TE127-G4A Black Body
  • 2x Hikvision DS-29072 UN ¼”-20 Tripods
  • Hikvision DS-2902ZJ Tripod Adapter
  • Hikvision DS-3E0109P-E(C) 4-Port 100Mbps Long-range Unmanaged POE Switch
  • Hikvision DS-D5022FN 21.5” Monitor VGA/ HDMI Input
  • Hikvision DS-7608NI-12/8P 8 Channel NVR
  • FREE Hikvision iVMS-4200 Client Software
  • 2x PoE Cables
  • 2x 'Stay 2m Away' Floor Sticker (300mm x 300mm)
  • 1x 'Please Keep a Safe Distance of 2m' Tape Roll - 33m
Part Code

Hikvision DS-2TD2636B DeepinView Bullet Body Temperature Thermal Cameras Technical Specifications

Specifications  DS-2TD2636B-10/P DS-2TD2636B-13/P DS-2TD2636B-15/P
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Pixel Interval 17μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent
Temperature Difference)
≤ 35 mk (@25 °C,F# = 1.0) ≤ 40 mk (@25 °C,F# = 1.0)
Lens (Focal Length) 9.7 mm 13 mm 15 mm
IFOV 1.75mrad 1.3mrad 1.13 mrad
Field of View 37.5° × 28.5° (H × V) 28,8° × 21.6° (H × V) 24.5° × 18.5° (H × V)
Min. Focusing Distance 1m 2m 2.5 m
Aperture F 1.0
Optical Module
Max. Image Resolution 2688 × 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Lens (Focal Length) 4 mm 6 mm
Field of View 84° × 44.8° (H × V) 51.7° × 28° (H × V)
WDR 120 dB
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Smart Function
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).
Temperature Range 30 °C to + 45 °C
Temperature Accuracy ± 0.5 °C
Infrared
IR Distance Up to 50 m
IR Intensity and Angle Automatically adjusted
Network
Main Stream Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-stream Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
Video Compression H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering
Integration
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/relay output/smart capture/FTP upload/email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ
± 10%
Audio Output Linear level, impedance: 600 Ω
Reset 1, Reset Button
Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
SD Memory Card Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256 GB)
Supports manual/alarm recording
Analog Video Output 1.0 V [p-p]/75 Ω, BNC, PAL/NTSC
Application Programming Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform,
ONVIF (Profile S, Profile G, Profile T)
Client iVMS-4200, Hik-Connect
Web Browser IE 8-11, Chrome 41-44, Firefox 30-51
General
Menu language 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 24 VAC± 25%, 12 VDC± 25%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W
9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W
PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Working Temperature/Humidity Temperature: 10 °C to 35 °C(Indoor and windless environment use only)
Humidity: 95% or less
Protection Level IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight Approx. 1.82 kg (4.01 lb)
