Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera (±0.5°C)

SKU
DS-2TP31B-3AUF
Rating:
0%
(0)
Reward Points
:
484
£581.92 £484.93
In Stock
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Clearance

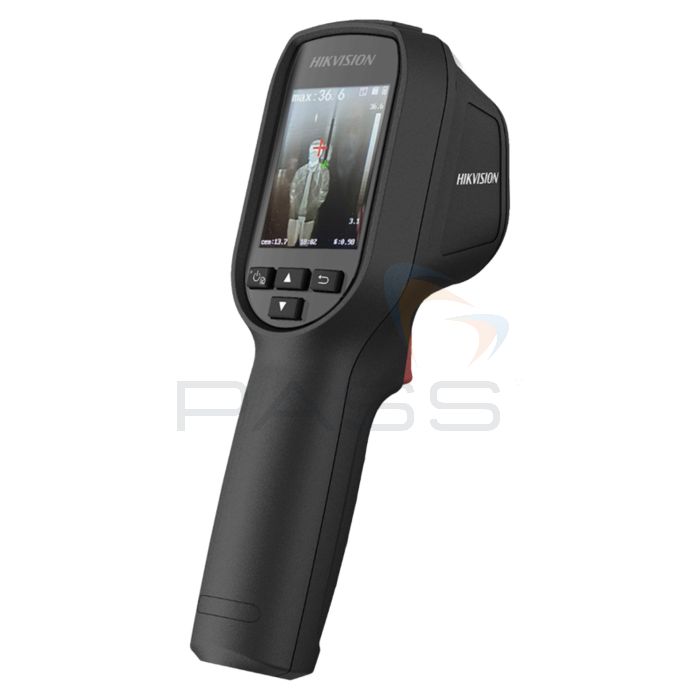

Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera aimed right

Optimised for detecting elevated skin-surface temperature, the Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera is a handheld infrared imager suitable for preliminary skin-temperature screening in public places such as offices, factories, stations, airports, schools and concert/ sports venues.

Elevated skin-surface temperature is often indicative of a fever, a common symptom of many illnesses. When used alongside medical tests and procedures, the Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera can help to identify individuals who may be carriers of the virus. It is important to note that the Hikvision DS-2TP31B-3AUF Temperature Screening Thermal Camera is NOT a diagnostic tool; however, when used with virus-specific tests it can help to curb the potential spread of infection.

The Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera can measure skin temperature in real-time to an accuracy of ±0.5°C. The recommended distance between the target and thermal camera is 0.8-1.2m. Real-time temperatures are displayed along with the thermal image on the Hikvision DS-2TP31B-3AUF Temperature Screening Thermal Camera’s 2.4” LCD with a resolution of 320 x 240px.

Additionally, the Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera supports four thermal palettes and is equipped with a thermal detector with an IR resolution of 160 x 120px. Thermal images and temperature readings can be saved to the Hikvision DS-2TP31B-3AUF Temperature Screening Thermal Camera’s removable 8GB memory card.

Finally, the Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera is able to provide up to eight hours of continuous use.

The Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera is an accurate, ergonomic and easy-to-use thermal imaging camera, ideal for conducting initial skin-temperature screening in busy, indoor environments.

Please see the video below for further information regarding the Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera and a brief demonstration of how to set up and use this camera.

Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera Key Features

  • Optimised for detecting elevated skin-surface temperature
  • Handheld infrared imager suitable for preliminary skin-temperature screening in public places
  • Suitable for use in offices, factories, stations, airports, schools and concert/ sports venues
  • Identify people with elevated skin temperature who may require further virus-specific screening
  • Use alongside medical equipment and tests to curb the potential spread of infection
  • Please note this camera is not a diagnostic tool
  • Measures and displays skin temperature in real-time
  • Accuracy: ±0.5°C
  • Target distance: 0.8-1.2m
  • 2.4” LCD with a resolution of 320 x 240px
  • Supports four thermal palettes
  • Thermal detector with an IR resolution of 160 x 120px
  • Save thermal images and data to the removable 8GB memory card
  • Operating time: up to 8 hours of continuous use
  • Accurate, ergonomic and easy-to-use thermal imaging camera
  • Ideal for initial skin-temperature screening in busy, indoor environments

What’s Included?

  • Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera – Accuracy: ±0.5°C
  • Power Adaptor
  • USB Cable
  • 8GB Memory Card
  • User Manual
  • Disc
  • Wrist Strap

Hikvision DS-2TP31B-3AUF Temperature-Screening Thermal Camera Technical Specifications

Thermal Module  Image sensor Uncooled Focal Plane Arrays
Max. Resolution 160 × 120
Pixel Pitch 17μm
Response waveband 8μm to 14μm
NETD < 40mK (@ 25 °C,F#=1.0)
Field of View 37.2° × 50 °
Focal length 3.1 mm
IFOV (mrad) 5.48 mrad
Min. Focus Length ≥ 150 mm
Aperture F 1.1
Image Display Monitor 320 × 240 resolution 2.4’’ LCD display
Palettes Black hot, White hot, Rainbow, Ironbow
Thermography Rules 3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature
Thermographic Range 30°C to 45 °C
Thermographic Accuracy ±0.5 °C
Target distance  Recommended distance between the camera and measured object 0.8 - 1.2m
Battery Battery Type Rechargeable Lithium Battery
Battery Operating Time 8 hours continuous running
Storage Replaceable memory card (default 8G, support up to 128G storage)
Photo Thermal image
Language English
General Power 3.7 V DC/0.4 A
Power Consumption Less than 1.2 W
Hardware Interface micro USB
Working Temperature 10 °C to 35 °C
Protection level IP54
Drop Test Height 2 m (6.56 feet)
Dimension 196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
Weight Approx. less than 350 g (0.77 lb)
Accessory Power Adaptor, USB cable, 8GB memory card, User manual, Disc, Wrist Strap
