Hikmicro LYNX LC06 Handheld Thermal Monocular – 50Hz

SKU
DS-2TS01-06XF/W
Rating:
0%
(0)
Reward Points
:
307
£368.76 £307.30
2 in Stock
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know

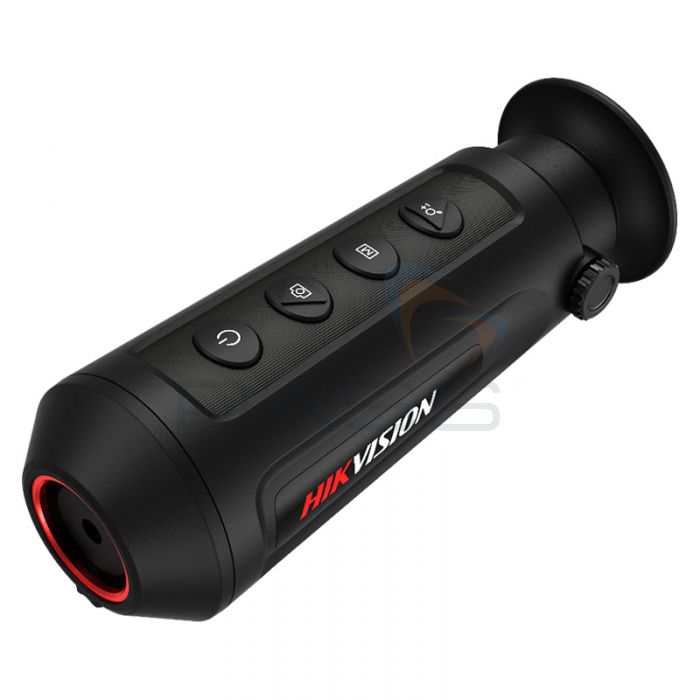

Hikmicro  LYNX LC06 Handheld Thermal Monocular

The Hikmicro LYNX LC06 Handheld Thermal Monocular is an infrared imager with a 160 x 120px IR resolution, a thermal sensitivity of less than 35mK (at 25°C), a 50Hz frame rate, and a high-sensitivity thermal detector capable of providing clear images even in the dark.

The Hikmicro LYNX LC06 Handheld Thermal Monocular is equipped with digital zoom (1x, 2x, 4x), selectable colour palettes (Black Hot, White Hot, Red Hot and Fusion), and the following functions/ modes:

  • Highest Temperature Target Tracking: tracks a ‘hotspot’, for instance, an animal or person, making it easier for the user to monitor targets
  • Distance Measurement
  • Wi-Fi Hot Spot: use the Hik-Thermal App to view footage captured by the monocular in real-time on a secondary device; the user can also operate the monocular’s digital zoom and video recording functions via the app
  • Sleep mode: temporarily switches off observation to prevent light leakage and to preserve the battery life
  • Record Video
  • Capture Snapshot

Footage and snapshots captured using the Record Video and Capture Snapshot functions can be saved to the Hikmicro LYNX LC06 Handheld Thermal Monocular's built-in 8GB memory. The footage is viewable via the Hikmicro LYNX LC06 Handheld Thermal Monocular's 720 x 540px, 0.2-inch LCOS display.

The Hikmicro LYNX LC06 Handheld Thermal Monocular is also designed to include a type-C interface and an integrated rechargeable lithium battery capable of providing approximately ten hours of power (see ‘Technical Specifications’).

This durable (IP67), highly sensitive and cost-effective Hikmicro LYNX LC06 Handheld Thermal Monocular is ideal for improving visibility outdoors and in the dark. It is suitable for hunting, travelling and hiking applications.

Hikmicro LYNX LC06 Handheld Thermal Monocular Key Features

  • Handheld infrared imager designed to improve visibility outdoors and in the dark
  • Thermal sensitivity: less than 35mK (at 25°C)
  • Frame rate: 50Hz
  • The high-sensitivity thermal detector provides clear images even in the dark
  • IR resolution: 160 x 120px
  • Digital zoom: 1x, 2x, 4x
  • Selectable colour palettes: Black Hot, White Hot, Red Hot and Fusion
  • Highest Temperature Tracking function
  • Distance Measurement function
  • Wi-Fi Hot Spot function: use the Hik-Thermal app to view real-time footage and operate the digital zoom and Record Video function via a secondary instrument
  • Sleep mode
  • Record Video function
  • Capture Snapshot function
  • Built-in 8GB memory
  • 720 x 540px, 0.2-inch LCOS display
  • Type-C interface
  • Integrated rechargeable lithium battery
  • The battery provides approximately ten hours of power (see ‘Technical Specifications’)
  • IP67
  • Durable, highly sensitive and cost-effective thermal imager
  • Ideal for hunting, travelling and hiking operations

What’s Included?

  • Hikmicro LYNX LC06 Handheld Thermal Monocular (Eco) – 50Hz
  • Integrated Rechargeable Lithium Battery

Hikmicro LYNX LC06 Handheld Thermal Monocular Technical Specifications

Model  LYNX LC06
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 × 120
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD less than 35 mk (@25°C), F#=1.0
Lens (Focal Length) 6.2 mm
Field of View 24.7° × 18.7° (H × V)
Digital Zoom 1 ×, 2 ×, 4 ×
Aperture F1.1
Magnification 0.6 to 2.4
Image Display
Monitor 0.2 inch, LCOS, 720 × 540
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Frame Frequency 50 Hz
Smart Function
Highest Temperature Spot Tracking Yes
Wi-Fi Hot Spot Yes
Standby Mode Yes
System
Storage Built-in memory module (8 GB)
Record Video Yes
Capture Snapshot Yes
Power Supply
Battery Type Lithium Battery
Battery Operating Time 10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C)
7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)
Battery Capacity Display Yes
General
Power 5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature -20 °C to 55 °C (-4 °F to 131 °F)
Protection Level IP67
Dimension 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight 250 g (0.55 lb)

Detection, Recognition and Identification Ranges

Detection Range
Vehicles: 1.4 × 4.0 m 559 m
Humans: 1.8 × 0.5 m 182 m
Recognition Range
Vehicles: 1.4 × 4.0 m 140 m
Humans: 1.8 × 0.5 m 46 m
Identification Range
Vehicles: 1.4 × 4.0 m 70 m
Humans: 1.8 × 0.5 m 23 m
Note The table is only for reference, the performance may vary from camera to camera.
Hikmicro LYNX LC06 Handheld Thermal Monocular - Datasheet Datasheets Hikmicro LYNX Handheld Thermal Monocular - Quick Start Guide Manuals & Guides Hikmicro LYNX Handheld Thermal Monocular - User Manual Manuals & Guides

Reviews

Additional Information
SKU DS-2TS01-06XF/W
Manufacturer Part Code HM-LC06
Model DS-2TS01-06XF/W
