Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal w/ Stand

SKU
DS-K5604A-3XF/V
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £54.56, read more.

:
5456
£3,273.60 £2,728.00
In Stock Free UK Delivery* Delivery Options

UK - Zone 1 Orders

England, Wales & most of Scotland.

Free 3-5 Working Day1
Orders Over £99 & Selected Items

Economy 2-3 Working Day1
From £1.95

Tracked 2-3 Working Day
£4.95

Express Next Working Day
£7.95

Priority Next Working Day
£14.95 (Pre-Noon)
£19.95 (Pre-10:30am)

Saturday & Sunday
£14.95 (Pre-Noon)

UK - Zone 2 Orders

Highlands, Islands & Northern Ireland.

Free 3-5 Working Day1
Selected Items (Calculated at Checkout)

Economy 2-3 Working Day2
From £1.95

Tracked 2-3 Working Day
£9.95

International Orders

Delivery is calculated at checkout.


Note: Next day delivery is not guaranteed for orders placed after 3:00pm. Prices Ex VAT.

1, 2 See delivery page for more details.

Advice & Support
Price Match Request

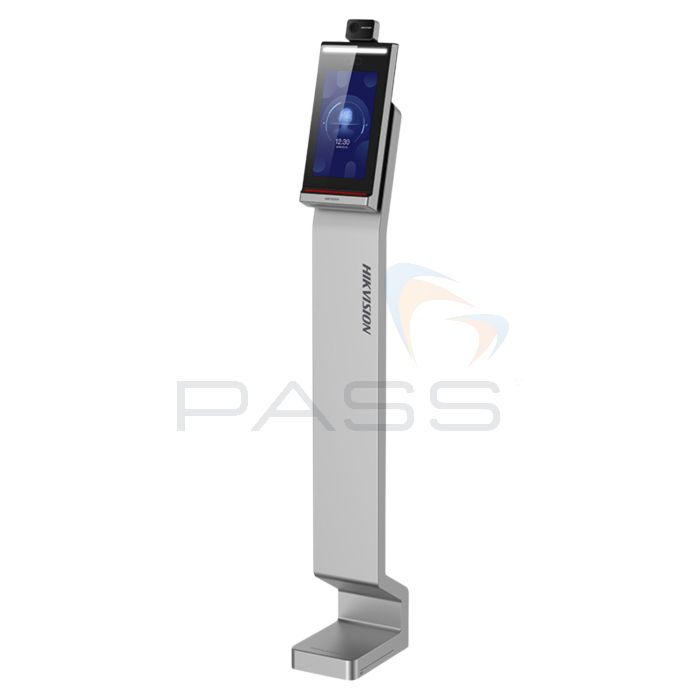

Supplied ready-assembled, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand is comprised of a 10.1-inch LCD with an integrated stand bracket. It is an access control instrument capable of face recognition and temperature screening. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand is ideal for protecting staff and the public in stations, dwellings, factories, businesses, schools and campuses against unauthorised access and further spread of infection.

To this end, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal features three authentication modes:

  • Face recognition and temperature screening
  • Card recognition and temperature screening
  • Face recognition, card recognition and temperature screening

The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will issue a particular audio alert depending on the authentication result.

Practical, Plug & Play Design

The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand is optimised for rapid deployment and can be set up within five minutes. It is free of wiring, installation and configuration. Please see the following video for a brief demonstration of the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand.

Further to this, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal features a watchdog design to protect it and ensure that it operates correctly. Moreover, it is equipped with a 2MP wide-angle lens for face recognition and a Vanadium Oxide uncooled sensor for temperature screening. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal also includes a high-performance processor with a deep learning algorithm, as well as a Wiegand command for communicating with third-party turnstiles, and an IO output. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can be connected to a card reader (NOT included) to enable card recognition.

Face Recognition

Individuals should stand between 0.3m and 2m away from the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal during face recognition. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can determine face recognition within 0.2s per person and has a 99% accuracy. **

It is able to store up to 50 000 recognised faces, as well as 100 000 events, and will transfer and save face recognition comparison results and captured photographs to the user’s software.

Face Mask Alerts

In addition to determining face recognition, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can assess whether an authorised/ recognised person is wearing a face mask and can be set to issue a voice prompt and grant or deny access according to the policy of the premises.

The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal includes the following two face mask alerts:

  • Face Mask Wearing Alert: if the recognised face is not wearing a face mask, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will issue a voice reminder while granting authentication/ access to the building or room.
  • Forced Mask Wearing Alert: if the recognised face is not wearing a mask, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will issue a voice alert while denying authentication/ access to the room or building.

Attendance Monitoring

Furthermore, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can be used to monitor check-in, check-out, break-in, break-out, overtime-in, and overtime-out times. To ensure accurate timekeeping, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal supports NTP, automatic and manual time synchronisation.

Temperature Screening

The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal is able to measure skin-surface temperatures to an accuracy of ±0.5°C.* It has a temperature range of 30°C to 45°C and will issue a voice prompt when abnormal skin temperature is measured. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal’s door status can be configured to open or close when out-of-range skin temperature is measured.

Temperature measurements are displayed on the authentication page. Online and offline temperature data is transferred to the user’s software, where it is saved, using TCP/IP communication.

The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand is an easy-to-setup, easy-to-use and efficient access control and temperature-screening instrument. It is ideal for security and temperature-screening applications.

Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand Key Features

  • An access control instrument with two face mask alerts capable of face recognition and temperature-screening
  • 10.1-inch LCD with an integrated stand
  • LCD features adjustable brightness
  • Ideal for preventing unauthorised access and further spread of infection
  • Suitable for stations, dwellings, factories, businesses, schools and campuses
  • Three authentication modes: face recognition and temperature screening, card recognition and temperature screening, and face recognition, card recognition and temperature screening
  • Issues a particular audio alert/ prompt depending on the authentication result
  • Optimised for rapid deployment
  • Can be set up within five minutes: free of wiring, installation and configuration
  • Watchdog design
  • 2MP wide-angle lens
  • Vanadium Oxide uncooled sensor for temperature measurement
  • High-performance processor with a deep learning algorithm
  • Wiegand command for communicating with third-party turnstiles
  • IO output
  • Can be connected to a card reader (NOT included) to enable card recognition
  • Face recognition distance: 0.3m to 2m
  • Can determine face recognition within 0.2s per person
  • Face recognition accuracy: 99%**
  • Store up to 50 000 recognised faces and 100 000 events
  • Transfers and saves face recognition comparison results and photographs to the user’s software
  • Face Mask Wearing Alert: if the recognised face is not wearing a face mask, the terminal will issue a voice reminder while granting authentication/ access to the building or room
  • Forced Mask Wearing Alert: if the recognised face is not wearing a mask, the terminal will issue a voice alert while denying authentication/ access to the room or building
  • Attendance monitoring: logs check-in, check-out, break-in, break-out, overtime-in and overtime-out times
  • Supports NTP, automatic and manual time synchronisation
  • Temperature accuracy: ±0.5°C*
  • Temperature range: 30°C to 45°C
  • Issues a voice prompt when abnormal skin temperature is detected
  • Configure the door status to open or close if an out-of-range temperature is detected
  • Temperature measurements are displayed on the authentication page
  • Online and offline temperature data is sent to the user’s software via TCP/ IP communication
  • Temperature data is saved to the user’s software
  • Easy-to-setup, easy-to-use and efficient access control and temperature-screening instrument
  • Ideal for security and temperature-screening applications

*To achieve this accuracy, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal should be switched on and left to warm up for ninety minutes.

**Biometric recognition products are not 100% suitable for anti-spoofing environments. Multiple authentication modes should be used for applications requiring a higher level of security.

What’s Included?

  • Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand
Part Code

Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand Technical Specifications

Temperature Measurement
Temperature range 30 °C to 45 °C (86 °F to 113 °F)
Sensor Vanadium Oxide uncooled sensor
Resolution 120 × 160
Frame rate 25 fps
Measurement accuracy 0.1 °C
Measurement deviation ± 0.5 °C, without black body calibration
Measuring distance 0.3 to 2 m
Screen
Size 10.1-inch
Type Touch screen
Camera
Pixel 2 MP
Lens Dual-lens
Network
Wired network Support, 10/100/1000 Mbps self-adaptive
Interface
Network interface 1
RS-485 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
TAMPER 1
Capacity
Face capacity 50,000
Event capacity 100,000
Authentication
Face recognition duration < 0.2 s per person
Face recognition distance 0.3 to 2 m
Function
Face anti-spoofing Support
Audio prompt Support
Others
Power supply 12 VDC/2 A
Working temperature 0 °C to 50 °C (32 °F to 122 °F)
For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
Working humidity 10 to 90% (No condensing)
Application environment Indoor and windless environment use only
