Pixfra Draco Multispectral Binoculars
- 256 x 192px, 384 x 288px & 640 x 512px options
- Multi-Function Wheel
- Four-Button Layout
- 4-in-1 Functionality
SKU
PIX-DRACO
Integrated thermal imaging, 4K digital night vision, laser range finding, and infrared illumination are all part of the Pixfra Draco binoculars. The Draco range also has Electronic Image Stabilisation (EIS), Defog, a curved interface, and menu memory, with dual-band Wi-Fi and Pixfra’s AI-powered PIPS 3.0 processing.
The binoculars are suitable for observing wildlife, monitoring security, or handling tactical situations. They can be operated with one hand and are comfortable to hold. The Draco series has intuitive controls, a sharp 0.49-inch Full HD OLED display, and 18x magnification. They also feature Electronic Image Stabilisation (EIS), Defog, a curved interface, and menu memory, with dual-band Wi-Fi and Pixfra’s AI-powered PIPS 3.0 processing.
The D225-4K has a 256×192 sensor with <18mK NETD sensitivity, detecting subtle heat signatures up to 1,300 metres. The D335-4K has a 384×288 sensor with <15mK NETD, extending detection to 1,800 metres, while the D635-4K has a 640×512 sensor and a 1,800 metres range.
Key Features
- 4K UHD
- 256 x 192px, 384 x 288px & 640 x 512px options
- EIS (Electric Image Stabilisation)
- Defog mode
- Built-in Wi-Fi
- Pixfra app compatibility
- 64 GB storage
- Unique chest carrying case included
- Ergonomic Grip
- Lightweight design
- Multi-Function Wheel
- Four-Button Layout
- 4-in-1 Functionality
- Unmatched Image Quality, Superior in Every Frame
- High-Sensitivity Thermal Imaging
- Immersive Display Clarity
- Convenient Menu Memory Function
- All-Round Viewing Experience
- IR Illumination Optional
- Long Runtime with Flexible Power Options
- Pixfra Unique Chest Pack
- Stable Dual-Band Wi-Fi Streaming
- PIPS 3.0 Exclusive Image Processing Technology
- Auto day & night mode
- Foldable eyecups with comfortable design
- Immersive 0.49-inch FHD OLED display with 18x ocular lens
Product Range
- Pixfra PFI-D225-4K Draco D225-4K Multispectral Binoculars, 256 x 192px
- Pixfra PFI-D335-4K Draco D335-4K Multispectral Binoculars, 384 x 288px
- Pixfra PFI-D635-4K Draco D635-4K Multispectral Binoculars, 640 x 512px
Draco: Ergonomic Grip Lightweight Desgin
Draco: Multi Function Wheel and Four Button Layout
Draco: 4 in 1 Functionality

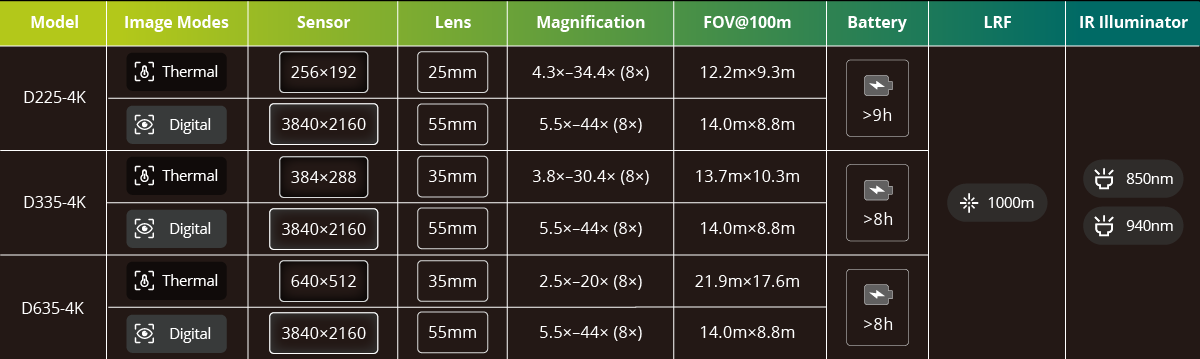

Technical Information
Specification
| PFI-D225-4K | PFI-D335-4K | PFI-D635-4K | |
|---|---|---|---|
| Thermal Parameters | |||
| Detector Type | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 256 (H) x 192 (V) | 384 (H) x 288 (V) | 640 (H) x 512 (V) |
| Pixel Pitch | 12 μm | 12 μm | 12 μm |
| Spectral Range | 8μm～14μm | 8μm～14μm | 8μm～14μm |
| Sensitivity (NETD) | ≤18 mK@f/1.0 | ≤15 mK@f/1.0 | ≤15 mK@f/1.0 |
| Focal Length | 25 mm | 35 mm | 35 mm |
| Aperture | F0.9 | F0.95 | F1.0 |
| Focus Control | Manual | Manual | Manual |
| Field of View | H: 7.0°; V: 5.3°/H: 12.2 m; V: 9.3 m (@100 m) | H: 7.5°; V: 5.6°/H: 13.7 m; V: 10.3 m (@100 m) | H: 12.52°; V: 10.0°/H: 21.9 m; V: 17.6 m (@100 m) |
| Detection Distance | 1,300 m (4,5265.09 ff) | 1,800 m (5,905.51 ff) | 1,800 m (5,905.51 ff) |
| Close Focus Distance | 3 m | 3 m | 3 m |
| Digital Zoom | 1x-8x | 1x-8x | 1x-8x |
| Base Magnification | 4.3x | 3.8x | 2.5x |
| Digital Parameters | |||
| Max. Resolution | 3840 (H) x 2160 (V) | 3840 (H) x 2160 (V) | 3840 (H) x 2160 (V) |
| Frame Rate | 50 Hz | 50 Hz | 50 Hz |
| Focal Length | 55 mm | 55 mm | 55 mm |
| Aperture | F2.0 | F2.0 | F2.0 |
| Field of View | H: 8.0°; V: 4.5°/H: 14.0 m; V: 8.8 m (@100 m) | H: 8.0°; V: 4.5°/H: 14.0 m; V: 8.8 m (@100 m) | H: 8.0°; V: 4.5°/H: 14.0 m; V: 8.8 m (@100 m) |
| Focal Length | Manual | Manual | Manual |
| Close Focus Distance | 7 m | 7 m | 7 m |
| Base Magnification | 5.5x | 5.5x | 5.5x |
| Digital Zoom | 1x-8x | 1x-8x | 1x-8x |
| Display | Display | Display | Display |
| Screen Size | 1920 x 1080, 0.49 inch, OLED | 1920 x 1080, 0.49 inch, OLED | 1920 x 1080, 0.49 inch, OLED |
| Color Palettes | Thermal: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia Digital: Colour, Black White, Green, Yellow, Auto | Thermal: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia Digital: Colour, Black White, Green, Yellow, Auto | Thermal: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia Digital: Colour, Black White, Green, Yellow, Auto |
| Interpupillary Adjustment | 60 mm-74 mm | 60 mm-74 mm | 60 mm-74 mm |
| Image Modes | Thermal/Visible/PIP | Thermal/Visible/PIP | Thermal/Visible/PIP |
| Video Recorder | Yes | Yes | Yes |
| Snapshot | Yes | Yes | Yes |
| Wi-Fi Hotspot | Yes | Yes | Yes |
| Hot Spot Track | Yes | Yes | Yes |
| FFC (Flat Field Correction) Mode | Auto; Semi-Auto; Manual | Auto; Semi-Auto; Manual | Auto; Semi-Auto; Manual |
| Standby Mode | Yes | Yes | Yes |
| DPC (Defective Pixel Correction) | Yes | Yes | Yes |
| MIC | Yes | Yes | Yes |
| Compass | Yes | Yes | Yes |
| PIP | Yes | Yes | Yes |
| GPS | Yes | Yes | Yes |
| Local Album | Yes | Yes | Yes |
| Storage | Built-in 64 GB | Built-in 64 GB | Built-in 64 GB |
| PIPS 3.0 | Yes | Yes | Yes |
| Smart IR | Yes | Yes | Yes |
| IR Illuminator Wavelength | 850 nm | 850 nm | 850 nm |
| IR Illuminator Range | 400 m (1,312.34 ff) | 400 m (1,312.34 ff) | 400 m (1,312.34 ff) |
| Replaceable IR Illuminator | Yes | Yes | Yes |
| Laser Range | 1,000 m | 1,000 m | 1,000 m |
| Laser Accuracy | ±1 m | ±1 m | ±1 m |
| Laser Safety | Class 1 | Class 1 | Class 1 |
| Battery Type | Replaceable 18650 Lithium battery | Replaceable 18650 Lithium battery | Replaceable 18650 Lithium battery |
| Battery Operating Time | ≥9 h@25 °C (Wi-Fi off) | ≥8 h@25 °C (Wi-Fi off) | ≥8 h@25 °C (Wi-Fi off) |
| Power Supply | 5 VDC | 5 VDC | 5 VDC |
| USB | USB Type-C | USB Type-C | USB Type-C |
| Operating Temperature | -30 °C to +55 °C (-22 °F to +131 °F) | -30 °C to +55 °C (-22 °F to +131 °F) | -30 °C to +55 °C (-22 °F to +131 °F) |
| Protection Grade | IP67 | IP67 | IP67 |
| Product Dimensions | 195.0 mm x 130.6 mm x 61.7 mm (7.68" x 5.14" x 2.43") (L x W x H) | 195.0 mm x 130.6 mm x 61.7 mm (7.68" x 5.14" x 2.43") (L x W x H) | 195.0 mm x 130.6 mm x 61.7 mm (7.68" x 5.14" x 2.43") (L x W x H) |
| Packaging Dimensions | 286.0 mm x 228.0mm x 107.0 mm (11.26" x 8.98" x 4.21") (L x W x H) | 286.0 mm x 228.0mm x 107.0 mm (11.26" x 8.98" x 4.21") (L x W x H) | 286.0 mm x 228.0mm x 107.0 mm (11.26" x 8.98" x 4.21") (L x W x H) |
| Net Weight | ≤0.61 kg (1.34 lb) | ≤0.62 kg (1.37 lb) | ≤0.62 kg (1.37 lb) |
Document Downloads
Pixfra Draco D635-4K Multispectral Binoculars, 640 x 512px Datasheet
Pixfra Draco D335-4K Multispectral Binoculars, 384 x 288px Datasheet
Pixfra Draco D225-4K Multispectral Binoculars, 256 x 192px Datasheet
Pixfra Draco Multispectral Binoculars User Manual
