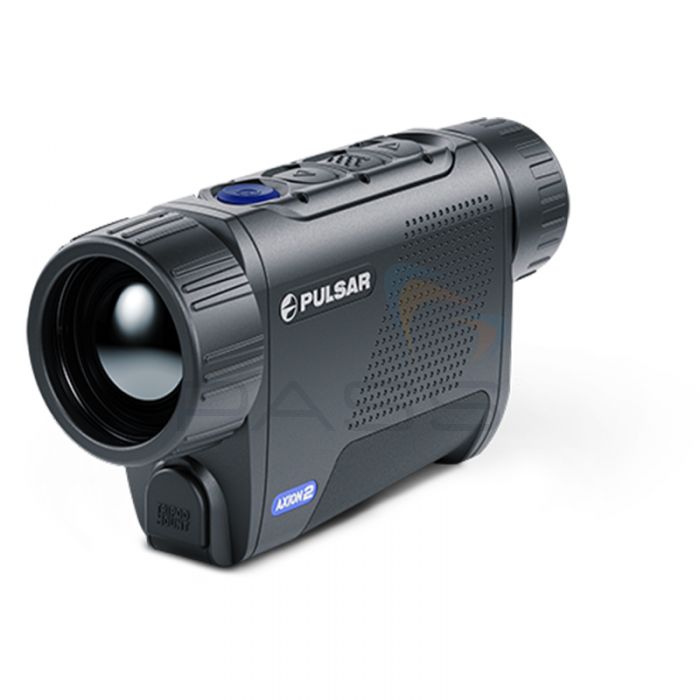

Pulsar Axion 2 XG35 Thermal Imaging Monocular (50Hz)

SKU
PU-77476
Rating:
0%
(0)
Call For Pricing

We require additional information before you purchase this product

or Call 01642 265 428 to discuss product options

Dual-Use Item: Export authorisation is required to temporarily or permanently move this item outside of the UK (Council Regulation (EC) No.428/2009)

The Pulsar Axion 2 XG35 Thermal Imaging Monocular is a thermal scope with a European Lynred sensor with a 640x480px resolution, germanium fast-aperture F35/1.0 lens, enhanced image processing algorithms, 1750m detection range, variable magnification, and eight selectable thermal colour palettes. It captures clear, detailed images even in rain, fog, and high atmospheric humidity which are visible on the high-contrast AMOLED display and can be saved to the internal memory of the Pulsar Cloud. Integrated 2.4GHz and 5GHz Wi-Fi also enable live streaming to a smartphone with the Stream Vision 2 App installed. Via this app, you can also update the monocular’s software wirelessly and operate it remotely. The Pulsar Axion 2 XG35 Thermal Imaging Monocular is housed in a strong yet light magnesium alloy casing. It is fully waterproof and has been ergonomically designed to ensure easy handling and operation by both right- and left-handed users. Powered by a high-capacity APS5 rechargeable battery, the Pulsar Axion 2 XG35 Thermal Imaging Monocular offers up to eleven hours of continuous operating time. Its five-second start up works to conserve battery life as you can leave the Pulsar Axion 2 XG35 Thermal Imaging Monocular switched off until the moment it is required. The Pulsar Axion 2 XG35 Thermal Imaging Monocular is a small, sensitive, and simple-to-use thermal scope ideal for scouting, spotting, and hunting.

Pulsar Axion 2 XG35 Thermal Imaging Monocular Key Features

  • A thermal scope ideal for scouting, spotting, and hunting
  • European Lynred sensor with a 640x480px resolution (pixel size 12µm)
  • Germanium, fast aperture, F35/1.0 lens that supports high-infrared transmission in the LWIR range
  • Captures clear, detailed images even in rain, fog, and high atmospheric humidity
  • Enhanced image processing algorithms deliver high-quality rendering of targets, objects, and the background
  • Smoothing filter
  • Fine brightness and contrast adjustments
  • Detection range: 1750m (for a 1.8m-tall object) even in darkness
  • Variable magnification: 2.5 to 20x
  • Adjust the digital zoom continuously or in 2x steps
  • 8 selectable thermal colour palettes
  • High-contrast AMOLED display
  • Integrated photo and video recorder
  • Store hours of footage and tens of thousands of images to the internal memory
  • Download images to a PC via a USB-C port
  • 16GB of free Pulsar Cloud storage space when you download the Stream Vision 2 App and register your monocular
  • Operate the monocular remotely, stream footage, and wirelessly update the scope’s software using the Pulsar Stream Vision 2 App
  • Built-in 2.4GHz and 5GHz Wi-Fi
  • Housed in a magnesium alloy casing
  • Fully waterproof (IPX7)
  • Lightweight (300g)
  • Compact
  • Easily held and operated by both right- and left-handed users
  • High-capacity APS5 rechargeable battery
  • Battery life: 11 hours of continuous operation from a single charge
  • Fast start-up: 5 seconds
  • Small, sensitive, simple-to-use thermal monocular suitable for outdoor applications

What’s Included?

  • Pulsar Axion 2 XG35 Thermal Imaging Monocular (50Hz)
  • APS5 Rechargeable Battery
  • 2x Battery-locking Covers
  • Power Adapter
  • USB Type-C Cable
  • Hand Strap
  • Cloth
  • Tripod Adapter
  • Carrying Case
  • Quick Reference User Manual

Pulsar Axion 2 XG35 Thermal Imaging Monocular Technical Specifications

Main
Sensor 640x480 pix. @ 12 µm (NETD <40 mK)
Objective lens F35 /1.0
Magnification, x 2.5 - 20
Field of view (HxV), degrees / m@100m 12.5x9.4 / 21.9
Detection range, m 1750
Sensor
Type uncooled
Resolution, pixels 640x480
Pixel pitch, µm 12
NETD, mK <40
Frame rate, Hz 50
Optics
Objective lens F35 /1.0
Magnification, x 2.5-20
Field of view (HxV), degrees / m @ 100 m 12.5x9.4 / 21.9
Eye relief, mm 14
Display
Type AMOLED
Resolution, pixels 1024x768
Range Performance
Detection range, m 1750
Video Recorder
Video / photo resolution, pixel 1024x768
Video / photo format .mp4 / .jpg
Built-in memory, GB 16
Wi-Fi
Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac
Frequency, GHz 2.4/5 GHz
Environmental Characteristics
Degree of protection, IP code (IEC60529) IPX7
Operating temperature range, °С -25 – +40
Connections & Compatibilities
Mount, type 1/4"
Supported Application Stream Vision 2
Power Supply
Output voltage, V 3.7
Battery type APS 5 Li-ion Battery Pack
Capacity, mAh 4900
Operating time on battery pack (at t=22°C), h * 7
External power supply, V 5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material Magnesium Alloy
Dimensions, mm 152x50x74
Weight, kg 0.3
