Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars

SKU
PU-77465
Rating:
0%
(0)
Call For Pricing

We require additional information before you purchase this product

or Call 01642 265 428 to discuss product options

Dual-Use Item: Export authorisation is required to temporarily or permanently move this item outside of the UK (Council Regulation (EC) No.428/2009)

Ideal for outdoor applications such as hunting, scouting, and spotting, the Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars are comfortable, ergonomic, powerful infrared-imaging binoculars. Capturing clear, sharp thermal imaging even in challenging weather conditions such as rain and fog, they are equipped with a 640x480px IR resolution, <25mk thermal sensitivity, and a fast aperture F50/1.0 germanium lens. In addition to this, the Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars offer advanced image-enhancing algorithms, variable magnification, eight selectable thermal colour palettes, long 1800m detection range (for a 1.8m-tall object), and a precise laser rangefinder. Images and footage are visible on the high-contrast HD AMOLED display and can be captured and saved to the internal memory or Pulsar Cloud. Furthermore, integrated Wi-Fi and compatibility with Pulsar’s Stream Vision 2 App enables real-time image streaming, remote operation, and wireless software updates. Ergonomic, compact, and lightweight, the fully waterproof (IPX7) Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars are contained in a light yet strong magnesium alloy housing and will remain functional at temperatures ranging from -25°C to +50°C. To maximise user comfort, the interpupillary distance is adjustable between 56mm and 71mm and function buttons have been ergonomically placed with the most used functions able to be activated with a single touch. Finally, the Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars are powered by a built-in 4Ah battery and removable 3.2Ah battery; together, these cells offer ten hours of operating time.

Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars Key Features

  • Comfortable, rugged, and powerful infrared-imaging binoculars
  • IR resolution: 640x480px
  • Thermal sensitivity: <25mk
  • Fast aperture F50/1.0 germanium lens
  • Captures clear, sharp, detailed thermal imaging even in rain and fog
  • Detects slight temperature differences
  • Advanced image algorithms ensure clear, noise-free imaging with better detail and contrast
  • Long detection range: 1800m (for a 1.8m-tall object), even in the dark
  • Precise laser rangefinder: range 1km, accuracy ±1m
  • Variable magnification: 2.5x to 20x
  • 8x digital zoom
  • Adjust the zoom in 2x intervals or continuously
  • Eight selectable thermal colour palettes
  • High-contrast HD AMOLED display
  • Built-in photo and video recorder
  • Save tens of thousands of photos and hours of footage to the internal memory
  • Compatible with Pulsar’s Stream Vision 2 App
  • Registered users with the Stream Vision 2 App are allocated 16GB of free Pulsar Cloud storage space
  • Operate the monocular remotely, stream footage, and wirelessly update the scope’s software using the Pulsar Stream Vision 2 App
  • Built-in 2.4GHz and 5GHz Wi-Fi
  • Housed in a light but strong magnesium alloy housing

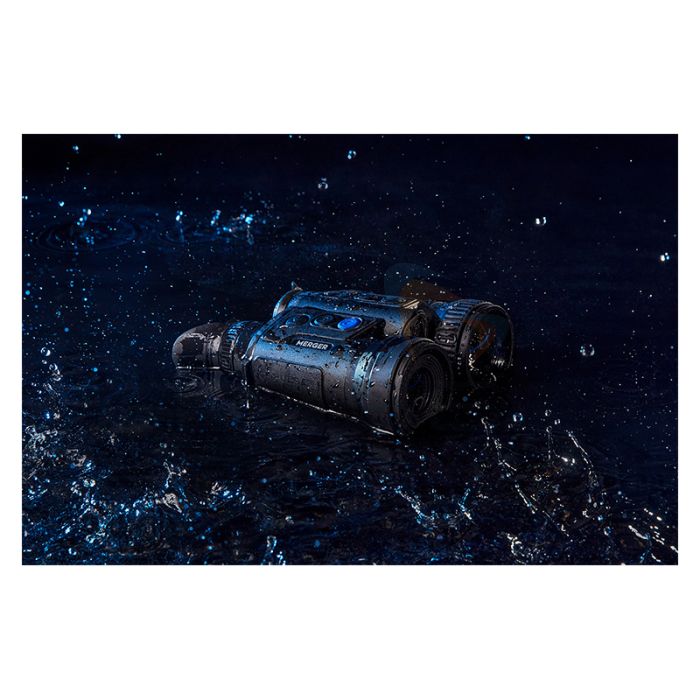

  • Fully waterproof (IPX7)
  • Operating temperature: -25°C to +50°C
  • Adjustable interpupillary distance: 56mm to 71mm
  • Powered by a built-in 4Ah battery and removable 3.2Ah battery
  • Operating time: 10 hours
  • Compact, convenient, comfortable thermal imaging scopes ideal for outdoor applications

What’s Included?

  • Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars
  • APS3 Battery Pack
  • APS Battery Charger
  • Power Adapter
  • USB Type-c to Type-C Cable
  • Neck Strap
  • Tripod Adapter
  • Cloth
  • Carrying Case
  • Quick Start Guide

Pulsar Merger LRF XP50 Pro Thermal Imaging Binoculars Technical Specifications

Main
Sensor 640x480 @ 17 µm (NETD <25 mK)
Objective lens F50/1.0
Magnification, x 2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m@100m 12.4x9.3 / 21.8x16.3
Detection range, m 1800
Sensor
Type uncooled
Resolution, pixels 640x480
Pixel pitch, µm 17
NETD, mK <25
Frame rate, Hz 50
Optics
Objective lens F50/1.0
Magnification, x 2.5 – 20
Field of view (HxV), degrees / m @ 100 m 12.4x9.3 / 21.8x16.3
Interpupillary distance adjustment, mm 56 - 71
Eye relief, mm 15
Display
Type AMOLED HD
Resolution, pixels 1024x768
Range Performance
Detection range, m 1800
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. measuring range, m 1000
Measurement accuracy, m ± 1
Video Recorder
Video/photo resolution, pixel 1024x768
Video/photo format .mp4 / .jpg
Built-in memory, GB 16
Wi-Fi
Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529) IPХ7 (waterproof)
Operating temperature range, °С -25 – +50
Connections & Compatibilities
Mount, type 1/4" socket
Supported Application Stream Vision 2
Power Supply
Output voltage, V 3.7
Battery type Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
Capacity, mAh
3200 (external) + 4000 (internal)
Operating time on battery pack (at t=22°C), h *
10
External power supply, V 5 (USB Type C)
Weight & Size
Body material Magnesium alloy
Dimensions, mm 196x143x76
Weight, kg 0.8
