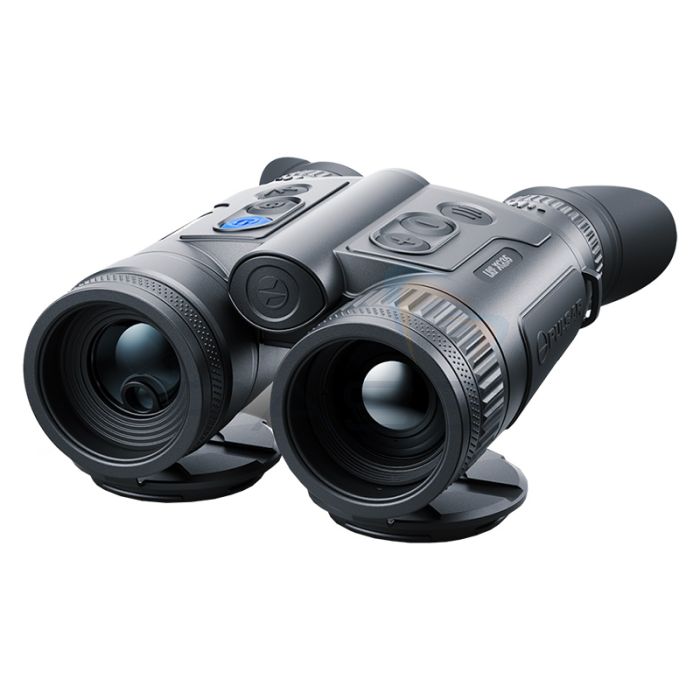

Pulsar Merger LRF XQ35 Binoculars (50Hz)

All Pulsar Products
  • <25mk Lynred Sensor
  • Built-in laser rangefinder
  • Light but strong magnesium alloy housing
SKU
PU-77483
MPN
PUL-77483

Read More

View All Ecology & Outdoor Thermal Monoculars & Binoculars

Optimised for ecology and outdoor applications, the Pulsar Merger LRF XQ35 Binoculars are infrared imaging binoculars, featuring a <25mK NETD Lynred sensor. It delivers crisp, clear thermal imaging even when thermal contrast is low such as in rain, fog, or high atmospheric humidity. A built-in laser rangefinder allows you to determine the distance to your target/subject to an accuracy of ±1m (up to 1km). Additionally, a proximity sensor switches the display off when the Pulsar Merger LRF XQ35 Binoculars are removed from your eyes; thereby preventing the display’s backlight from revealing your position. Other practical features include balanced weight distribution for comfortable long-time observation; conveniently placed function buttons; a light but strong magnesium alloy housing; and two rechargeable batteries that deliver an operating time of up to 11 hours.



Key Features

  • Comfortable viewing experience
  • Lightweight and compact
  • Classic binocular design
  • Highly sensitive thermal sensor
  • Proximity sensor
  • Rugged magnesium alloy housing
  • Precise laser ranging up to 1000m
  • Combined dual battery system
  • 3 levels of sensitivity amplification
  • Built-in photo and video recorder
  • Stream Vision 2. Wi-Fi integration with iOS and Android devices
  • Fast aperture F35/1.0 germanium lens
  • Dual Wi-Fi waveband support 2.4 / 5 GHz
  • High-contrast HD AMOLED displays
  • Selection of 8 color palettes
  • Operation in extreme temperatures -25 to +50°C
  • IPX7 submersion waterproof rated

What's Included?



  • Pulsar Merger LRF XQ35 Binoculars

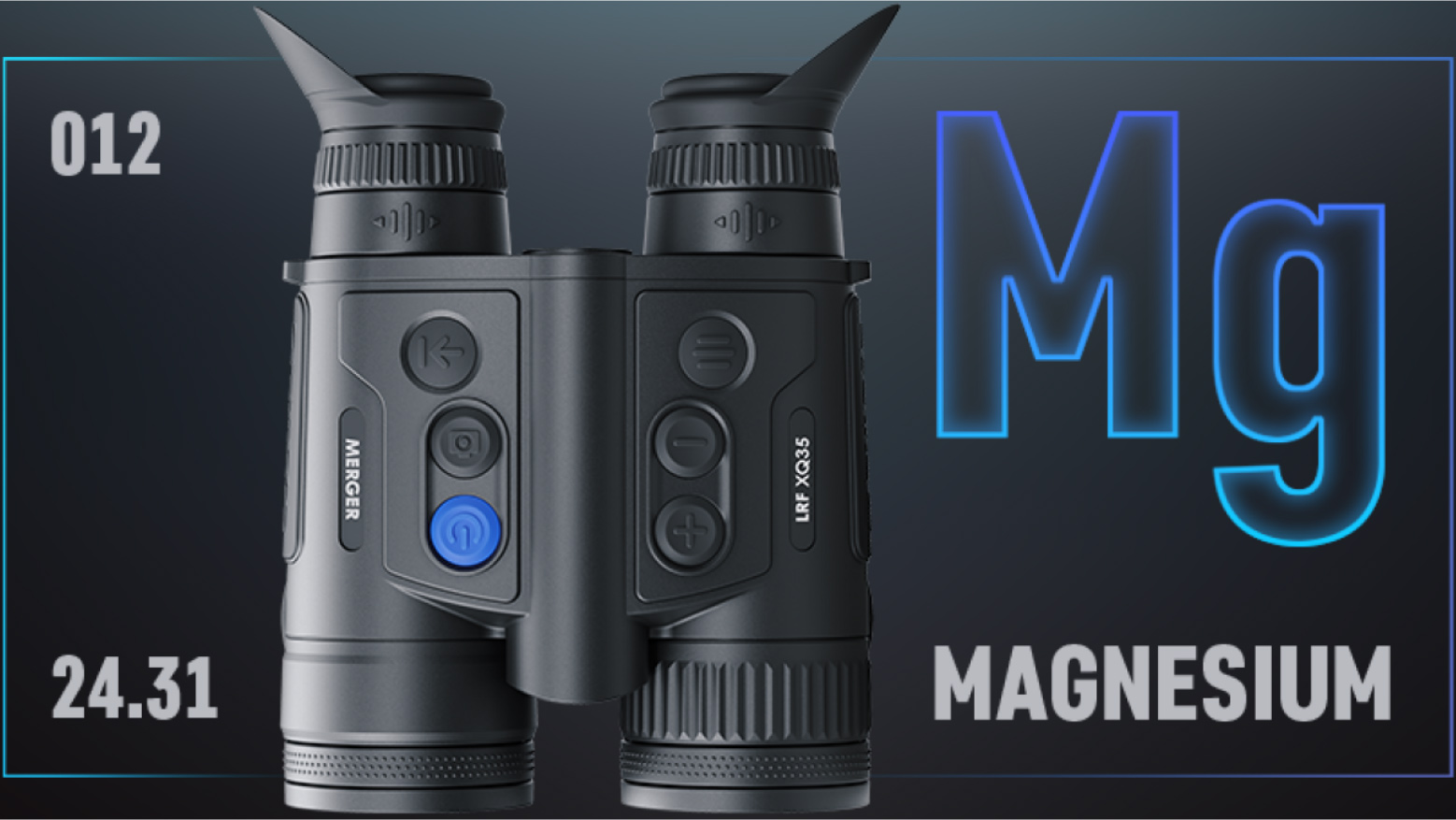

Pulsar Merger LRF XQ35 Binoculars (50Hz) being held close to the face to demonstrate the automatic proximity on/off trigger. Pulsar Merger LRF XQ35 Binoculars (50Hz) advertising the rugged magnesium alloy housing.
£2,224.17
£2,669.00 inc vat
Free Delivery*
Stock Due: Typically 1-6 Days
Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.

Ask An Expert
Price Match
Technical Information
Specification
Merger LRF XQ35
Main Sensor 384x288 pix. @ 17 µm (NETD <25 mK)
Objective Lens F35 / 1.0
Magnification, x 3 - 12 (x4 zoom)
Field of View (HxV), Degrees / m@100m 10.7x8 / 18.7x14
Detection Range, m 1350
Sensor Type uncooled
Resolution, Pixels 384x288
Pixel Pitch, µm 17
NETD, mK <25
Frame Rate, Hz 50
Optics Objective Lens F35 / 1.0
Magnification, x 3 - 12
Field of View (HxV), Degrees / m@100m 10.7x8 / 18.7x14
Interpupillary Distance Adjustment, mm 62 - 74
Eye Relief, mm 15
Display Type AMOLED HD
Resolution, Pixels 1024x768
Range Performance Detection Range, m 1350
Laser Rangefinder Safety Class for Laser Equipment according to IEC 60825-1:2014 1
Wavelength, nm 905
Max. Measuring Range, m 1000
Measurement Accuracy, m ± 1
Video Recorder Video / Photo Resolution, Pixel 1024x768
Video / Photo Format .mp4 / .jpg
Built-in Memory, GB 16
Wi-Fi Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz 2.4 / 5
Environmental Characteristics Degree of protection, IP code (IEC60529) IPX7 (waterproof)
Operating temperature range, °С -25 +50
Connections and Compatibilities Mount, Type 1/4" socket
Supported Application Stream Vision 2
Power Supply Output Voltage, V 3.7
Battery Type Dual Li-Ion Power System: 3.2
A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
Capacity, mAh 3200 (external) + 4000 (internal)
Operating Time on Battery Pack (at t=22°C), h * 11
External Power Supply, V 5V, 9V (USB Type-C Power Delivery)
Size Body Material Magnesium alloy
Dimensions, mm 181x133x68
Document Downloads
Pulsar Merger LRF XQ35 Binoculars User Manual Manual/Guide
Additional Information
SKU
PU-77483
Manufacturer Part Code
PUL-77483
