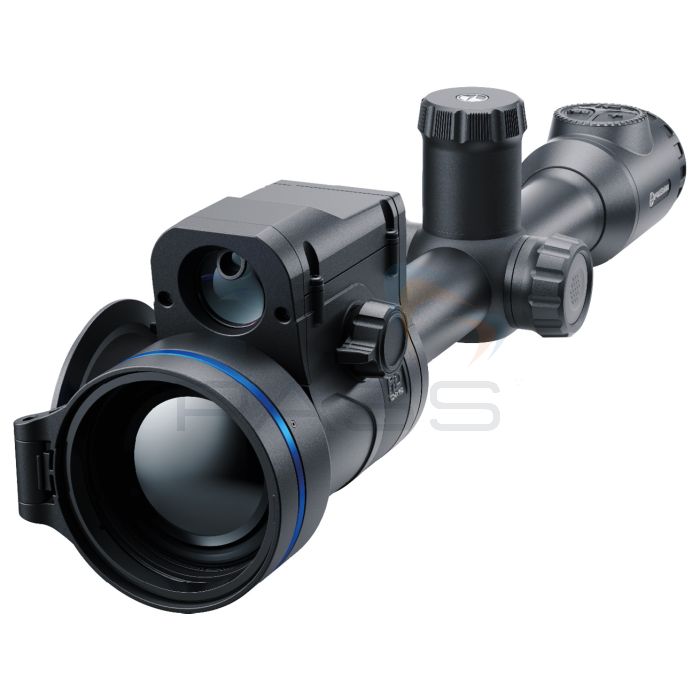

Pulsar Thermion 2 LRF 60 Series Thermal Imaging Riflescope
- Extreme image detail on high zoom
- Three options available
- Premium HD-class optics
- Unmatched Precision
SKU
THERM-2-LRF-60
The Pulsar Thermion 2 LRF 60 series thermal imaging riflescope has high-definition resolution sensors, 65 mm eye relief optics, and a wide-angle eyepiece that provides clarity and comfort.
Heat signals provide detailed identification of animals, extremities, and surroundings. Variable magnification improves focus and object recognition at long distances, with the HD resolution model (XL60) maintaining image detail across all magnifications.
The built-in laser rangefinder has an 800-metre range and the internal ballistics algorithm calculates aiming points. Users can create Ballistic profiles in the Stream Vision App and then upload them. The Bluetooth remote control is compatible with bare or gloved hands and attaches to the fore-end or butt of the rifle.
Key Features
- 10 shooting profiles / 100 zeroing distances
- Wi-Fi integration with iOS and Android devices
- 64 GB memory photo and video recording
- High-precision aiming in the «Picture-in-picture» mode
- A selection of 10 reticle shapes in 9 colour modes
- IPX7 submersion waterproof-rated
- Mounting on standard 30 mm rings
- .375H&H ready
- Customisable user mode for individual image adjustment
- Combined dual battery system
- Flexible set of colour palettes for various needs
- Operation in extreme temperatures -25 to +50°C
- Wireless remote control included
- High-precision ambidextrous lens focusing
- Highest eye relief in class: 65 mm
- Clear wide-angle eyepiece
- Wide field of view for easy scanning
- Integrated ballistic calculator for long-range shooting
- Precise laser range finding
- Extreme image detail on high zoom
- High Definition Thermal Sensor
- Premium HD-class optics
- Unmatched Precision
What's Included?
- Choice of thermal imaging riflescope
- Removable rubber eyecup
- APS3 Battery Pack (2 pcs.)
- Wireless Remote Control
- APS battery charger
- Power adapter
- USB Type-C cable with USB Type-A adapter
- Carrying case
- Lens-cleaning cloth
- Quick User Manual
- Pulsar warranty card
Product Range
- Pulsar PU-76575 Thermion 2 LRF XL60 Thermal Imaging Riflescope (50Hz)
- Pulsar PU-76576 Thermion 2 LRF XP60 Thermal Imaging Riflescope (50Hz)
- Pulsar PU-76577 Thermion 2 LRF XG60 Thermal Imaging Riflescope (50Hz)
Videos
Introduction
New Thermion 2 LRF 60 line | Higher base mag | Thermal imaging devices
Thermion 2 LRF XL60 Promotional
Thermion 2 LRF XL60 | New premium HD device | Pulsar Vision
Thermion 2 LRF XL60 Unmatched Precision
Unmatched precision | Thermion 2 LRF XL60 | Thermal imaging device
Technical Information
Specification
| XL60 | XP60 | XG60 | |
|---|---|---|---|
| Main | |||
| Sensor | @ 12 µm 1024 x 768 | @ 17 µm 640 x 480 | @ 12 µm 640 x 480 |
| Objective Lens | F60/1.1 | ||
| Magnification, x | 2.5 - 20 | 3 - 24 | 4 - 32 |
| FOV (HxV) Degrees / m@100m | - | 14.4/18.1 | 7.3/12.8 |
| FOV (HxV), Degrees | 11.7 | - | - |
| FOV (HxV), m@100m | 20.5 | - | - |
| Detection Range | 2800 m | 2000 m | 2800 m |
| Reticle | |||
| Click Range, H/V, mm at 100m | 3200 / 3200 | 2840 / 2840 | 2000 / 2000 |
| Click Value, H/V, mm at 100m | 16 mm - 2.5x, 8 mm - 5x, 4 mm - 10x, 2 mm - 20x | 14 mm - 3x, 7 mm - 6x, 3.5 mm - 12 x, 1.75 mm - 24x | 10 mm - 4x, 5 mm - 8x, 2.5 mm -16x, 1.25 mm - 32x |
| Number of Preloaded Reticles | 10 | ||
| Sensor | |||
| Type | uncooled | ||
| Resolution, Pixels | 1024 x 768 | 640 x 480 | 640 x 480 |
| Pixel Pitch, µm | 12 | 17 | 12 |
| Sensor NETD, mK | < 35 | < 25 | < 40 |
| Frame Rate, Hz | 50 | ||
| Optics | |||
| Objective Lens | F60/1.1 | ||
| Magnification, x | 2.5 - 20 | 3 - 24 | 4 - 32 |
| FOV (HxV) Degrees / m@100m | - | 14.4/18.1 | 7.3/12.8 |
| FOV (HxV), Degrees | 11.7 | - | - |
| FOV (HxV), m@100m | 20.5 | - | - |
| Eye Relief, mm | 65 | ||
| Display | |||
| Type | Micro-OLED | ||
| Resolution, Pixels | 2560x2560 | ||
| Laser Rangefinder | |||
| Max. Measuring Range, m | 800 | ||
| Measurement Accuracy, m | ± 1 | ||
| Safety Class for Laser Equipment According to IEC 60825-1:2014 | 1 | ||
| Wavelength, nm | 905 | ||
| Video Recorder | |||
| Video / Photo Resolution, Pixel | 1280x960 | ||
| Video / Photo Format | .mp4 / .jpg | ||
| Built-in Memory, GB | 64 | ||
| Bluetooth | |||
| Wireless Protocol | BLE 4.2 | ||
| Wireless Standard | IEEE 802.15.1 | ||
| Frequency, Ghz | Frequency, Ghz | ||
| Wi-Fi | |||
| Wireless Protocol | Wi-Fi | ||
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) | ||
| Frequency, Ghz | 2.4 / 5 | ||
| Environmental Characteristics | |||
| Degree of Protection IP Code (IEC60529) | IPX7 (waterproof) | ||
| Operating Temperature Range, °С | -25 – +50 | ||
| Connections & Compatibilities | |||
| Compatible Mounts | Standard 30 mm rings | ||
| Supported Application | Stream Vision 2, Stream Vision Ballistics | ||
| Shock Resistance on the Smooth-bore Rifles, Caliber | 12 | ||
| Max. Recoil Power on Rifled Weapon (Eo), Joules | 6000 | ||
| Weight & Size | |||
| Body Material | Aluminium alloy | ||
| Dimensions, mm | 442 x 78 x 98 | ||
| Weight, kg | 1.2 | ||
Document Downloads
Pulsar Thermion 2 LRF XL60 Thermal Imaging Riflescope User Manual
Pulsar Thermion 2 LRF XP60 Thermal Imaging Riflescope User Manual
Pulsar Thermion 2 LRF XG60 Thermal Imaging Riflescope User Manual
