PRE-ORDER - DUE IN LATE APRIL

The Seek Scan Thermal Body Temperature Screening Camera is a temperature screening system that can be used to help slow or limit the possible spread of infectious diseases, such as the recent COVID-19 coronavirus. It measures the temperature of human skin and displays a PASS/ FAIL alert indicating whether each individual is within the user-specified limits.

Each scan takes approximately one second ensuring that efficiency is maximised and enabling the user to keep queues moving quickly. The Seek Scan Thermal Body Temperature Screening Camera will automatically scan and measure skin temperature when a human face is detected within the frame; it will also automatically save the temperature measurement, PASS/ FAIL alert and a visual and thermal JPEG image.

Utilising non-contact, non-invasive temperature measurement reduces contact between those scanning and those being scanned. As a result, the Seek Scan Thermal Body Temperature Screening Camera can potentially limit or slow the spread of infection between people; it is ideal for use in the following premises:

  • Small, medium and large businesses
  • Factories and warehouses
  • Hotels and restaurants
  • Venues, theatres and arenas
  • Nursing homes
  • Schools and day-care centres
  • Gyms and sports facilities

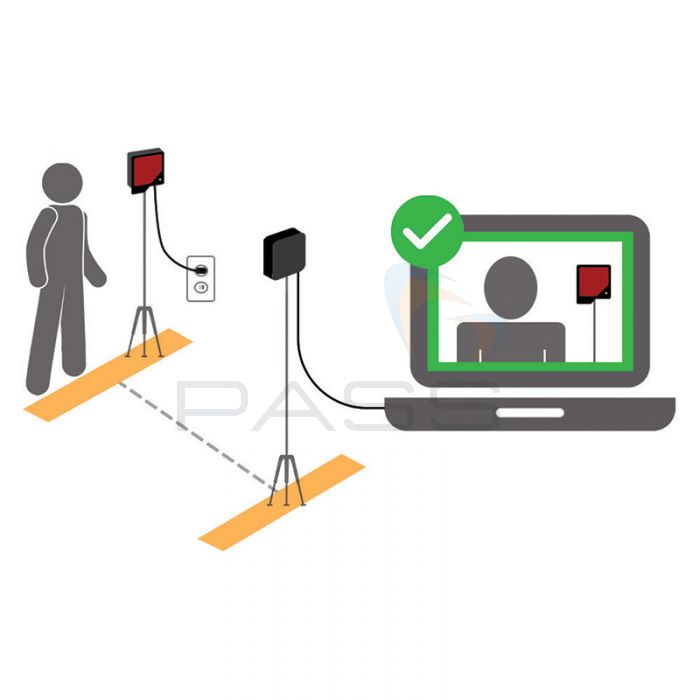

It can be set up in entrances, hallways and doorways using only two tripods and a connection to a Windows PC. Using the Seek Scan Thermal Body Temperature Screening Camera, businesses and public services can begin temperature screening within minutes.

The Seek Scan Thermal Body Temperature Screening Camera provides a simple, fast and clear method of screening human temperatures.

Seek Scan Thermal Body Temperature Screening Camera Key Features

  • Temperature screening system that can be used to help slow or limit the possible spread of infectious diseases
  • Measures the temperature of human skin
  • Displays a PASS/ FAIL alert for each person
  • User-adjustable temperature limits
  • 1-second scan maximises efficiency and ensures queues are kept moving quickly
  • Automatically scans and measures skin temperature when a human face is detected within the frame
  • Automatically saves the temperature measurement, PASS/ FAIL alert and a visual and thermal JPEG image
  • Non-contact, non-invasive measurement reduces contact between humans
  • Non-contact measurements can help to limit or slow the spread of infection
  • Can be set up in doorways, entrances and hallways
  • Easy to setup: requires two tripods and a connection to a Windows PC
  • Begin screening within minutes
  • A simple, fast and clear method of screening human temperatures

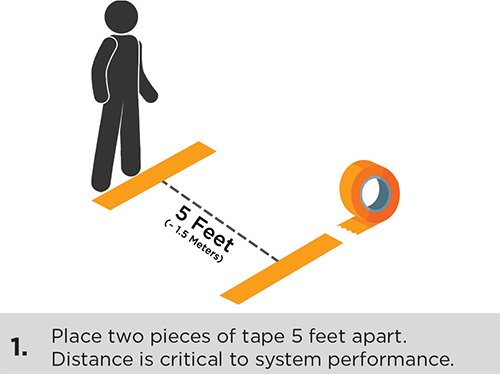

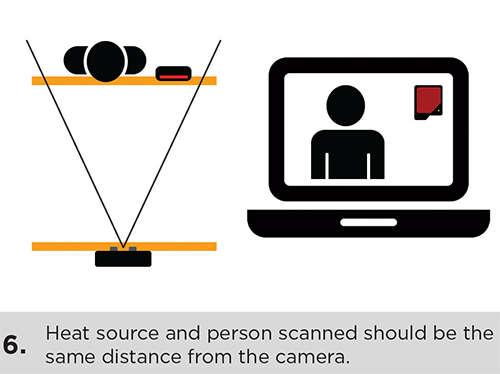

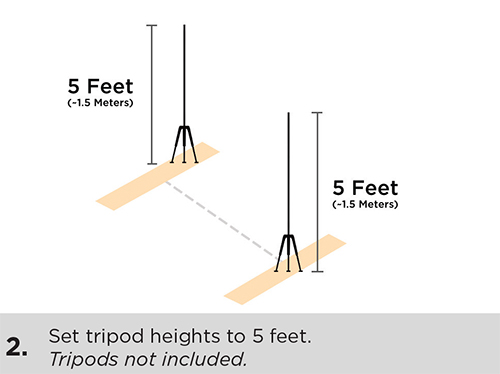

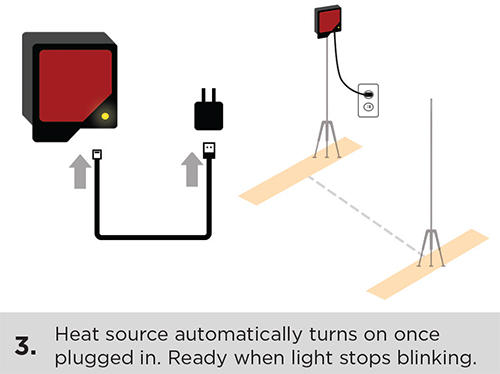

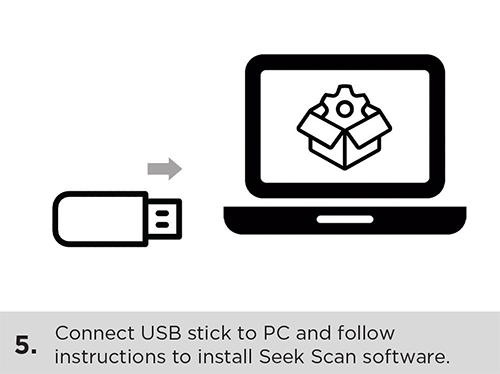

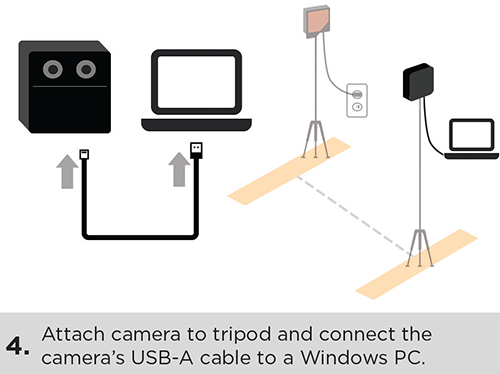

Seek Scan Thermal Body Temperature Screening Camera Key Set-up

Set-up 1 Set-up 2 Set-up 3 Set-up 4 Set-up 5 Set-up 6

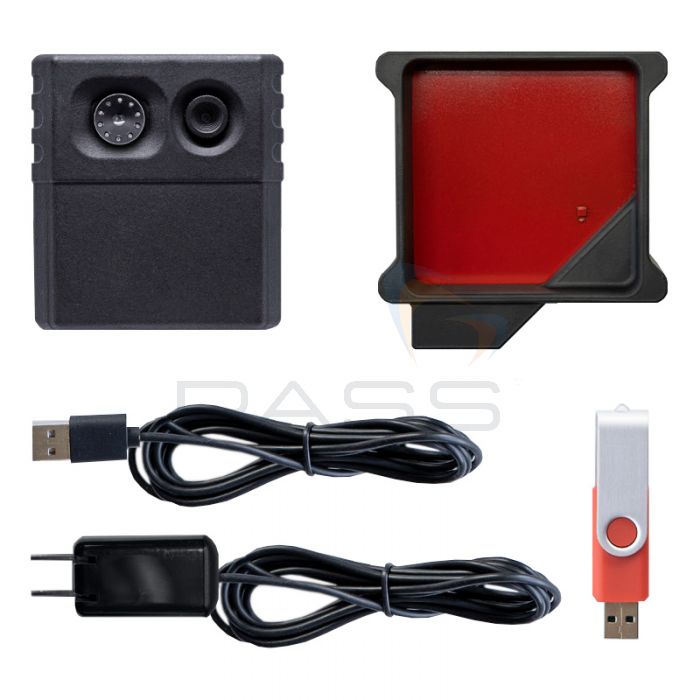

What’s Included?

  • Seek Scan Infrared Thermal Imaging Camera
  • Camera USB-A Cable
  • Fixed Heat Source
  • Fixed Heat Source USB-A Cable
  • Wall Wart for Power Outlet
  • USB Stick with Seek Scan Software
  • Quick Start Guide
Part Code

Seek Scan Thermal Body Temperature Screening Camera Technical Specifications

Camera Specifications
Thermal Sensor Resolution 206 (h) x 156 (v)
Visible Light Camera Resolution 1280 x 1024
Horizontal / Vertical Field of View 35° (h) / 26° (v)
Lens Focal Length / F-Number 4.0mm / f/1.20
Frame Rate <9Hz
Power USB 5V (Plugs into Computer USB-A port)
Dimensions (L x W x H) 3 x 8 x 9 cm
Weight 140 g
Thermography Specifications
Temperature Accuracy ± 0.5°F (0.2°C) between 96°F to 104°F (36°C to 40°C)
@ 5 Feet (1.5 meters) Using Fixed Heat Source
Sensor Sensitivity 40 mK (typical), <50 mK (max) @ 25°C (Post Signal Processing)
Fixed Heat Source Specifications
Constant Temperature Emits a constant reference temperature
Power 110V to 220V 50/60Hz (Plugs into Wall Outlet)
Dimensions (L x W x H) 3 x 9 x 9.5 cm
Weight 80 g
System Specifications
System Requirements Supported Operating Systems: Windows 7 and 10
Environmental Usage
Operating Temperature Optimal temperature accuracy in conditions below 106°F (41°C) ambient
Output
Scan Time 1 Second
Image Capture Format JPEG
Data Capture Event Trigger with JPEG and Thermal Spot Temperature
Data Output Ask your sales representative for options to integrate Seek Scan data with other systems
