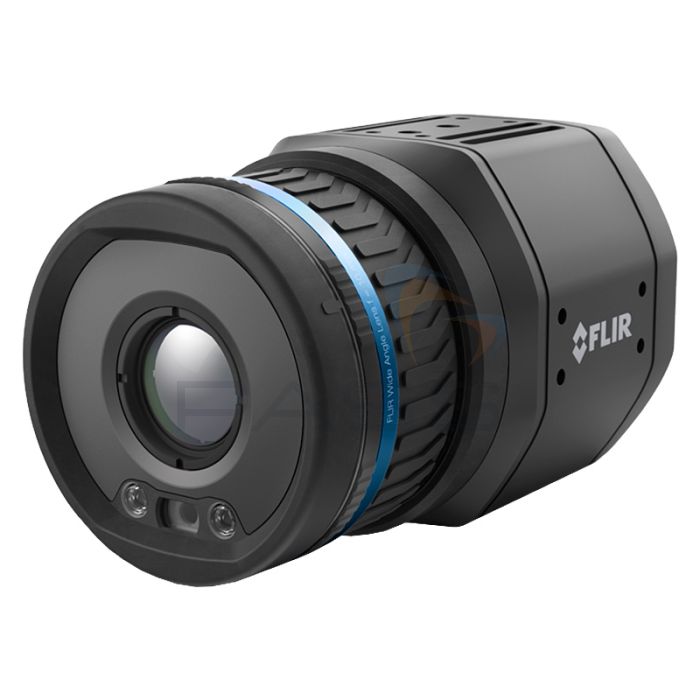

Teledyne FLIR A500 Image Streaming Automation Thermal Camera

Description

The Teledyne FLIR A500 Image Streaming Automation Thermal Camera delivers unmatched power and flexibility. This infrared-imaging automation camera with image streaming technology is ideal for complex remote monitoring and temperature measurement objectives. It features an IR resolution of 464 x 348px, -20°C to +1500°C temperature range and motorised focus. The Teledyne FLIR A500 Image Streaming Automation Thermal Camera delivers compressed radiometric thermal image streaming, making it possible to connect multiple cameras and/or share footage over Wi-Fi. It also supports GigE and RTSP data streaming protocols; is compatible with third-party SDK and application software support; and is GigE vision and GenIcam compliant. Linear temperature output simplifies the use of temperature data with third-party software. Available with a selection of lenses and optional extras, the Teledyne FLIR A500 Image Streaming Automation Thermal Camera is ideal for identifying potential faults before failure, preventing fires, optimising process control, and improving quality assurance.

Meet the new FLIR AXXX Series Fixed Mount Thermal Imaging Cameras

Teledyne FLIR A500 Image Streaming Automation Thermal Camera Key Features

Ideal for complex remote monitoring and temperature measurement objectives
Infrared-imaging automation camera with image streaming software
Choice of lenses
Selection of optional extras
IR resolution: 464 x 348px
Total temperature range: -20°C to +1500°C
Measuring accuracy: approx. ±2°C/2%
Compressed radiometric thermal image streaming
Connect multiple cameras and/or share footage over Wi-Fi
Identify potential issues before failure
Prevent fires
Optimise process control
Improve quality assurance
Optional FSX® (Flexible Image Enhancement) technology available
Integrates seamlessly into your monitoring system
GigE Vision and GenIcam compliant
Supports GigE and RTSP data streaming protocols
Compatible with third-party SDK and application software support
Linear temperature output
Optional multi-image-streaming
A powerful, flexible, reliable temperature-measuring automation camera

What’s Included?

Teledyne FLIR A500 Image Streaming Automation Thermal Camera
Your Choice of Lens

Tech Specs

Teledyne FLIR A500 Image Streaming Automation Thermal Camera Technical Specifications

Digital I/O connector type	M12 12-pin A-coded, Male (shared with external power)
Digital Inputs	2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose	Programmatically set; fault (NC)
Digital Outputs	3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Encoding	GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric
Ethernet Interface	Wired, Wi-Fi (optional)
WiFi	Optional feature purchased separately. RP-SMA, female connector
EMC	ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 (radio) EN 61000-4-8 (magnetic field) FCC 47 CFR Part 15 Class B (emission US) ISO 13766-1 (EMC - Earth-moving and building construction machinery) EN ISO 14982 (EMC - Agricultural and forestry machinery)
Image Frequency	30 Hz
Thermal Sensitivity/NETD	<30 mK, 42° @ 30°C (86°F) <40 mK, 24° @ 30°C (86°F) <50 mK, 14° @ 30°C (86°F)
Accuracy	±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Communication & Data Storage
Digital I/O connector type	M12 12-pin A-coded, Male (shared with external power)
Digital I/O isolation voltage	500 VRMS
Digital input purpose	NUC; NUC disable; image TAG (Start, Stop, General); image flow control (acc. SFNC 2.3) Single frame (on trigg) Multiframe (on trigg) Continuous Frame rate ROI
Digital Inputs	2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose	Programmatically set; fault (NC)
Digital Outputs	3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Encoding	GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric
Ethernet	For control, result, image, and power
Ethernet Communication	GigE Vision ver. 1.2 Client API GenICam compliant TCP/IP socket-based FLIR proprietary
Ethernet Connector Type	M12 8-pin X-coded, female; RP-SMA, female
Ethernet Interface	Wired, Wi-Fi (optional)
Ethernet Power	Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols	IEEE 1588 SNMP TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard	IEEE 802.3
Ethernet Type	1000 Mbps
Multicast	Yes
RS-232	NA
Unicast	Yes
WiFi	Optional feature purchased separately. RP-SMA, female connector
Imaging & Optical
Available Lenses	6°, 14°, 24°, 42°, Dual FOV (14° + 24°) athermalized lenses
Contrast Enhancement	GVSP video streaming: FSX® / Histogram equalization (IR only)
Detector Pitch	17 µm
Focal Plane Array (FPA)	Uncooled microbolometer
Image Frequency	30 Hz
Image Source	GVSP video streaming: visual / IR / MSX® (visual camera is an optional feature) GVSP radiometric streaming: IR camera
IR Resolution	464 × 348
Lens Identification	Automatic
Multi-Streaming	No, one stream only
Overlay	With / Without
Pixel Format	GVSP video streaming: YUV422 or MONO 8 GVSP radiometric streaming: MONO 16
Radiometric IR video streaming	GVSP (GigE Vision) protocol
Spectral Range	7.5–14 µm
Streaming Resolution	GVSP video streaming: 640 × 480 pixels GVSP radiometric streaming: 320 × 240 pixels
Thermal Sensitivity/NETD	<30 mK, 42° @ 30°C (86°F) <40 mK, 24° @ 30°C (86°F) <50 mK, 14° @ 30°C (86°F)
Video Streaming	GVSP (GigE Vision) protocol
Visible Camera	Optional accessory
Measurement & Analysis
Accuracy	±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Atmospheric transmission correction	Based on inputs of distance, atmospheric temperature, and relative humidity
Emissivity Correction	Variable from 0.01 to 1.0
External Optics & Windows Correction	Based on input of optics/window transmission and temperature
Measurement Corrections	Global object parameters
Object Temperature Range	-20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F), 300°C to 1500°C (572°F to 3632°F)
Reflected apparent temperature correction	Based on input of reflected temperature
General
Base Mounting	4× M4 on 4 sides
Housing material	Aluminium
Size (L x W x H)	123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Weight	0.82 kg (1.8 lb), camera only
Environmental & Certifications
Corrosion	ISO 12944 C4 G or H EN60068-2-11
EMC	ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 (radio) EN 61000-4-8 (magnetic field) FCC 47 CFR Part 15 Class B (emission US) ISO 13766-1 (EMC - Earth-moving and building construction machinery) EN ISO 14982 (EMC - Agricultural and forestry machinery)
Encapsulation	IEC 60529, IP 54, IP66 with accessory
Humidity (Operating and Storage)	IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles
Operating Temperature Range	-20°C to 50°C (–4°F to 122°F): -20°C to 40°C (-4°F to 104°F) (in free air) 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) Maximum camera case temperature: 65°C (149°F)
Radio Spectrum	FCC 47 CFR Part 15 Class C (2.4 GHz band US) FCC 47 CFR Part 15 Class E (5 GHz band US) RSS-247 (2.4 GHz and 5 GHz band Canada) ETSI EN 300 328 V2.1.1 (2.4 GHz band EU) ETSI EN 301 893 V2.1.1 (5 GHz band EU)
Shock	IEC 60068-2-27, 25 g
Tripod Mounting	UNC ¼″-20 on 2 sides
Vibration	IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway)
Power
External Power Operation	24/48 V DC 8 W max
External Voltage	Allowed range 18–56 V DC
Power Connection	M12 12-pin A-coded, male (shared with Digital I/O)
Power Consumption	7.5 W at 24 V DC typical 7.8 W at 48 V DC typical 8.1 W at 48 V PoE typical
