Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway

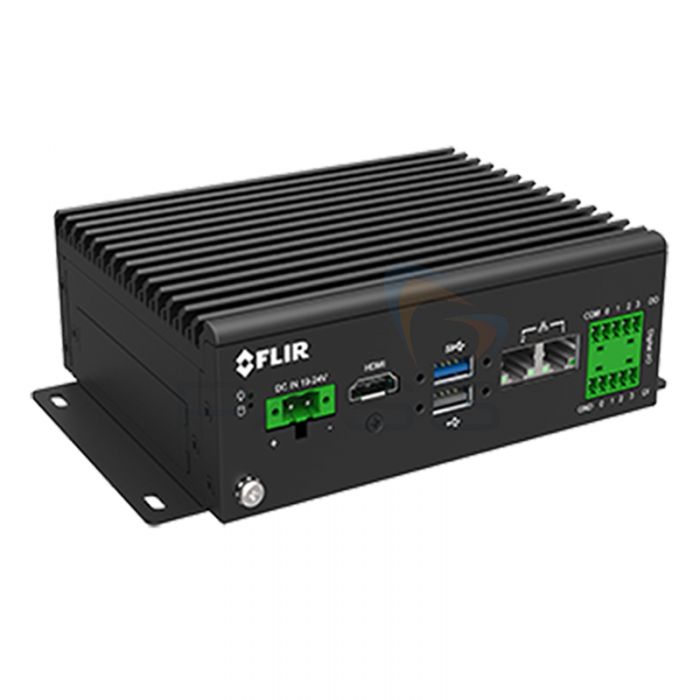

An industrial internet of things edge gateway designed to monitor the health of assets and equipment, the Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway collects data from multiple monitoring sensors and FLIR automation thermal cameras. It can be used with any sensor that outputs data in a common industrial protocol (e.g., REST API, MQTT, Modbus, and OPC UA) and is compatible with FLIR’s A50/A70, A400/A700, AX8, A310, A310f, and A500f/A700f automation thermal cameras. Additionally, the Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway supports a range of software platforms including Pi Historian and OPC UA. It also offers an array of data analysis functions, from applying filters and mathematical equations to creating at-the-edge alarms and alerts, which enables greater control of the data. The Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway can be used to optimise decision making, improve collaboration, and reduce maintenance costs. It is ideal for use in industrial plants, factories, and facilities. There are two versions of the Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway available, please see the table below for more information.
| SKU | Name | Number of Sensors Connected Simultaneously |
| T131367 | Teledyne FLIR Bridge | 5 |
| T131369 | Teledyne FLIR Bridge Pro | Variable (see technical specifications) |
Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway Key Features
- Industrial internet of things edge gateway for collecting data gathered from multiple monitoring sensors and FLIR automation thermal cameras
- Supports software platforms such as Pi Historian and OPC UA
- Monitor and analyse the condition of assets in one place
- Reduce maintenance costs and improve productivity, reliability, and safety
- Easily integrated into asset monitoring systems
- Automatically detects FLIR automation thermal cameras
- Compatible with FLIR’s A50/A70, A400/A700, AX8, A310, A310f, and A500f/A700f
- Collects information from any sensor that outputs data in a common industrial protocol such as REST API, MQTT, Modbus, and OPC UA
- Apply filters or mathematical equations before sending information to third-party asset software
- Create at-the-edge alarms and alerts
- Output processed or raw data separately or independently
- Transfer data to multiple on-premises and cloud destinations
- Reduce data volume to save on bandwidth or create space for more sensor inputs
- Built-in buffer prevents data loss when connectivity is poor or intermittent
- Optimise decision making and improve collaboration
- Scalable internet of things edge gateway ideal for use in industrial plants, factories, and facilities
What’s Included?
- Your Choice of Teledyne FLIR Bridge OR Bridge Pro IIoT Edge Gateway with Preloaded Software
- Wi-Fi Antennas
- QR Code with Link to Documentation
- Plug-in Block for Power
Teledyne FLIR Bridge/ Bridge Pro IIoT Edge Gateway Technical Specifications
| Specifications | FLIR Bridge | FLIR Bridge Pro |
| FLIR cameras supported | AX8, A310, A310f, A50/A70 Smart Sensors, A400/A500/A700 Smart Sensors, A500f, A700f |
|
| Third-party sensor support | Yes, multiple types | |
| Included software | ||
| Software | Sensor-to-cloud SW solution that enables the flow of sensor data to third-party systems |
|
| Number of sensors connected simultaneously |
5 | Limited by bandwidth and CPU power only. Number of sensors depends on the poll rate and data types |
| South plug-ins (sensors) | FLIR cameras, CSV, HTTP, Modbus, MQTT, OPC-UA, Open weathermap, and much more added continuously |
|
| North plug-ins (cloud) | Google Cloud Platform IoT Core, HTTP, KAFKA, OPC-UA, ThingSpeak, Splunk |
|
| Analytic filter plug-ins | Delta, mathematical expressions, Fast Fourier Transform, Python scripts, and much more added continuously. Pre-built analytical filters list available via online documentation. Bridge also allows customer user coded and ML models to be loaded. |
|
| Notification plug-ins | Logic and mechanism plugins to determine if a condition has been met, what information to output, and where to output the notification. |
|
| Camera discovery | Manual or automatic discovery | |
| System specification | ||
| Computer type | Fanless palm-size IPC | Fanless palm-size IPC |
| CPU | Intel Atom E3815 single core 1.46 GHz |
4-core ARM® Cortex®-A57 CPU, 8MB L2 + 4MB L3 |
| Memory | 4 GB DDR3L onboard | 4 GB LPDDR 4x onboard |
| Storage | 32 GB eMMC onboard | 16 GB eMMC onboard |
| Resolution | Full HD | 4 K (3840 × 2160) |
| Operating system | Linux Ubuntu 18.04 | Linux Ubuntu 18.04 |
| Connections | ||
| LAN | 2x RJ45 Gigabit Ethernet | |
| USB | 1x USB 3.0 | 1x USB 3.0, 1x USB 2.0 |
| Display output | 1x HDMI, supports 1920 × 1080 @ 60 Hz |
1x HDMI (Max. resolution 3840 × 2160 @ 60 Hz) |
| Wi-Fi | WIFI 802.11 a/b/g/n/ac (2.4 GHz/5 GHz) 2T2R and BT4.2 includes 2 Antennas |
|
| Power system | ||
| Power requirements | 10 to 30 VDC | 19 to 24 V (1.5 A to 1.18 A) |
| Power supply | Not included, sold separately. T131368 for standard, T131370 for Pro |
|
| Power connector | 2 pin terminal block | |
| Environmental data | ||
| Storage temperature | -40°C to 85°C (-40°F to 185°F) | |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
-10°C to 60°C (14°F to 140°F) |
| Relative humidity | 10% to 95% at 40°C, non-condensing | |
| Physical data | ||
| Weight | 0.5 kg | 1.2 kg |
| Size (L × W × H) | 100 × 70 × 30 mm | 147 × 118 × 52 mm |
| SKU | T13136X |
|---|
