Designed for detecting and diagnosing electrical and mechanical faults, the Teledyne FLIR E6 Pro Thermal Camera is a pistol-shaped infrared imager with onboard reporting and annotation functions as well as a range of imaging features. It offers a 240 x 180px thermal resolution, a 5MP digital camera, MSX imaging, one-touch level and span, and NFPA 70B-compliant Delta T measurement tools. Annotations can be added to thermal images and all data may be uploaded to the FLIR Ignite Cloud directly from the Teledyne FLIR E6 Pro Thermal Camera. Media can be edited, organised, and shared via the cloud or downloaded to your PC for use with FLIR’s Thermal Studio Software. Images are visible on the Teledyne FLIR E6 Pro Thermal Camera’s 3.5-inch, 640 x 480px touchscreen display. Finally, to ensure futureproofing, the Teledyne FLIR E6 Pro Thermal Camera supports Over-the-Air (OTA) updates which equip it with the latest firmware, bug fixes, and features. The Teledyne FLIR E6 Pro Thermal Camera is an easy-to-use, ergonomic infrared imager optimised for efficiency.
Teledyne FLIR E6 Pro Thermal Camera Key Features
- Thermal camera for the detection and diagnosing of electrical and mechanical faults
- Thermal resolution: 240 x 180px
- 5MP digital camera
- MSX imaging
- One-touch Level and Span
- Delta T measurement tools
- Notes function
- Images and annotations can be uploaded to the FLIR Ignite Cloud
- Access, edit, organise, and share data on FLIR Ignite Cloud
- Create reports via FLIR Ignite Cloud
- Download images to your PC/laptop to create advanced reports using FLIR’s Thermal Studio Software
- Point-and-shoot design
- 3.5-inch, 640 x 480px touchscreen display
- Over-the-Air (OTA) updates equip the camera with the latest firmware, bug fixes, and features
- An easy-to-use, ergonomic thermal camera optimised for efficiency
What’s Included?
- Teledyne FLIR E6 Pro Thermal Camera
- Hard Transport Case
- Battery (Installed)
- Power Supply
- FLIR Thermal Studio Starter
- Printed Documentation
- Plus FLIR EX-Pro Promo Bundle (see below)
*FLIR Ex-Pro Promo Bundle:
Bundle Value: £2,673 Now Only £1599 (Save £1074 ).
What you get included for FREE:
- Ignite Pro (100 GB): 12 months of cloud storage.
- FLIR Protect Warranty: 5 years total coverage on parts and labour (1 year standard + 4 additional years with registration).
- FLIR Academy Training: Exclusive Ex Pro-specific training.
- Plus: An extra price discount on the entire bundle!
Promotion Valid: 15th August - 31st October 2024 (Terms & Conditions Apply)
For More Information: Visit the FLIR PROMO.
Get Protected, Connected, and Trained with the E8 Pro, E6 Pro, or E5 Pro Bundles. Don't miss this limited-time offer!

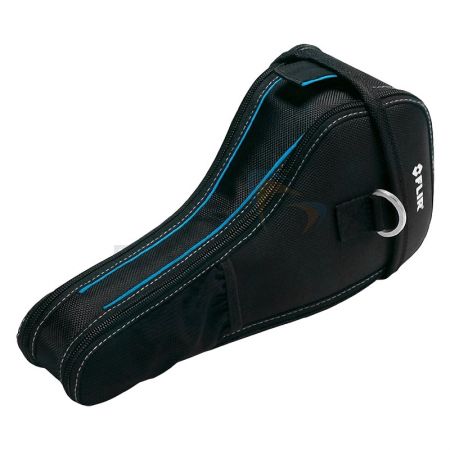

- FLIR Camera Accessories (Pouch and Car charger) - THERMBUNDLE1, typically £97.00
- FLIR Thermal Studio Software – 12-Month Subscription - T300341, typically £209.00

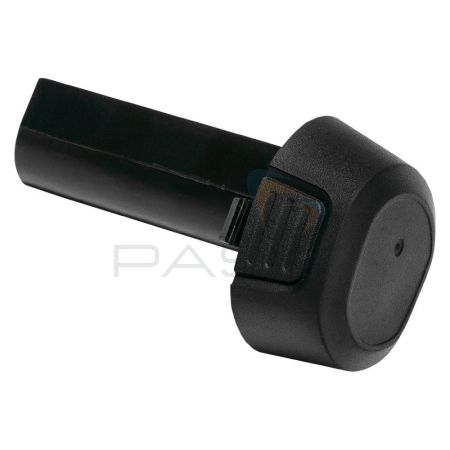

- FLIR T199362ACC Battery (Ex) - T198530, typically £87.00
Teledyne FLIR Ex Pro Thermal Cameras Technical Specifications
E5 Pro | E6 Pro | E8 Pro | |
Unique Features by Model | |||
IR Resolution | 160 × 120 (19,200 pixels) |
240 × 180 (43,200 pixels) |
320 × 240 (76,800 pixels) |
Thermal Sensitivity/NETD | <0.06°C (0.11°F) / <60 mK at 30°C (86°F) |
<0.05°C (0.09°F) / <50 mK at 30°C (86°F) |
<0.04°C (0.07°F) / <40 mK at 30°C (86°F) |
Spatial Resolution (IFOV) | 3.7 mrad | 2.5 mrad | 1.8 mrad |
Inspection Efficiency | |||
Multi Spectral Dynamic Imaging (MSX) |
IR image enhanced with visible camera detail | ||
FLIR Ignite | Instant upload to cloud storage over Wi-Fi | ||
FLIR Thermal Studio Suite | Compatible with full range of analysis and reporting software | ||
Capacitive Touchscreen | Access to onscreen menus, features, and keyboard | ||
Text | Text annotation on image using onscreen keyboard | ||
Gallery | Thumbnails and custom folder structure | ||
1-Touch Level/Span | Yes; automatic contrast enhancement | ||
Imaging & Optical | |||
Field of view (FOV) | 33° × 25° | ||
Focus | Focus free | ||
Image Frequency | 9 Hz | ||
Colour Palettes | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC | ||
Digital Camera | 5 MP | ||
Picture-in-Picture | IR area on visual image | ||
Detector Type | Uncooled microbolometer | ||
Image Modes | Thermal MSX, thermal, picture-in-picture, digital camera | ||
Minimum Focus Distance | 0.36 m (1.18 ft) | ||
Spectral Range | 7.5–13 µm | ||
Measurement & Analysis | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
||
Object Temperature Range | 20°C to 400°C (-4°F to 752°F) in two ranges |
20°C to 550°C (-4°F to 1022°F) in two ranges |
|
Measurements Correction | Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation |
||
Set-up Commands | Local adaptation of units, language, date and time formats | ||
Spot Meter | Center spot; box with min./max. | ||
Isotherm | Above alarm, below alarm | ||
Delta T | Yes, NFPA 70B compliant | ||
User Interface | |||
Display | 3.5 inch, 640 × 480 color LCD | ||
Flashlight | Bright LED | ||
Power | |||
Battery Operating Time | 4 hours | ||
Battery Type | Rechargeable Lithium-ion battery | ||
Charging System | Battery is charged inside the camera or in specific charger | ||
Charging Time | 2 h | ||
Power Management | Automatic shut-down | ||
Environmental & Certifications | |||
Drop Test | 2 m (6.6 ft) | ||
Encapsulation | IP54 (IEC 60529) | ||
Certifications | UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC | ||
EMC | EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
||
Humidity (Operating and Storage) |
IEC 60068-2-30/24 h 95% relative humidity | ||
Operating Temperature Range |
-15°C to 50°C (5°F to 122°F) | ||
Wi-Fi | Standard: 802.11 a/b/g/n (2.4 and 5 GHz) | ||
Shock | 25 g (IEC 60068-2-27) | ||
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | ||
Vibration | 2 g (IEC 60068-2-6) | ||
General | |||
Camera Size (L × W × H) | 244 mm × 95 mm × 140 mm (9.6 in × 3.7 in × 5.5 in) | ||
Camera Weight (including battery) |
0.590 kg (1.30 lb) | ||
Packaging Size | 385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in) | ||
Storage Media | Internal memory and onboard FLIR Ignite™ cloud connectivity with Wi-Fi |
Reviews
SKU | 13302-0201 |
---|---|
Manufacturer Part Code | 13302-0201 |
Country of Origin | Estonia |
