FLIR T560 Thermal Camera w/FLIR Studio Pro Software Lifetime Licence or ITC Training – Choice of Lenses

The FLIR T560 Thermal Camera is a high-resolution infrared imager with advanced imaging technology suitable for troubleshooting hot spots, finding hidden faults and confirming repairs. It can be used to inspect power generation, manufacturing, and electrical distribution and transmission equipment.

The FLIR T560 Thermal Camera can be purchased with a range of lens options (please see the table below for further details). Its AutoCal™ optics mean it can be used with a variety of lenses ranging from wide-angle to telephoto. This also means that lenses can be shared across a fleet of cameras.

SKU Lens/ Lenses
89001-0101 14° Lens
89002-0101 24° Lens
89003-0101 42° Lens
89004-0101 14° & 24° Lenses
89005-0101 24° & 42° Lenses
89006-0101 14°, 24° & 42° Lenses
89007-0101 14° & 42° Lenses
89009-0101 DFOV (14° - 24°)
89010-0101 80° Lens

Free FLIR Total Protect Package

  • Extended warranty & comprehensive protection
  • Enhanced value without additional costs
  • Priority support and services
  • Service freight covered
  • 1x discounted FLIR Total Care service
  • Use of a loan camera when your thermal camera is sent for its scheduled service
  • Fast-tracked support and service
  • 10% off additional FLIR Care services

An extended warranty that covers your camera against material defects for five years - for FREE, to find out more information please visit our blog.

Thermal Imaging

The FLIR T560 Thermal Camera can capture radiometric thermal images; this means large areas cane be scanned quickly and from a safe distance. It has an IR resolution of 640 x 480px which provides 307 200 individual non-contact temperature measurement points.

To ensure the capture of clear, high-quality images, the FLIR T560 Thermal Camera includes FLIR Vision Processing technology. It also features an MSX mode which enhances the clarity of thermal images using digital detail. The MSX mode improves the ease with which components and faults can be identified.

Additionally, the FLIR T560 Thermal Camera offers an UltraMax function which captures a series of thermal images in quick succession. These images can be combined using FLIR’s ResearchIR Software (NOT included) to create a single image with a higher resolution.

Advanced Measurement Tool

The FLIR T560 Thermal Camera has been equipped with laser-assisted autofocus and 1-touch level/span to ensure precise measurements.

In addition to this, the user can determine the distance to the component-under-investigation by using the FLIR T560 Thermal Camera’s on-screen laser distance measurement tool.

Moreover, as the FLIR T560 Thermal Camera is METERLiNK compatible, data gathered using FLIR’s METERLiNK-enabled clamp meters and multimeters can be added to thermal images and videos. Furthermore, integrated GPS means that the location is automatically included with images and the first frame of each video.

Ergonomic

Images are visible on the FLIR T560 Thermal Camera’s 4” LCD. The T560's display is 33% brighter and has a resolution that is four times greater than comparable cameras.

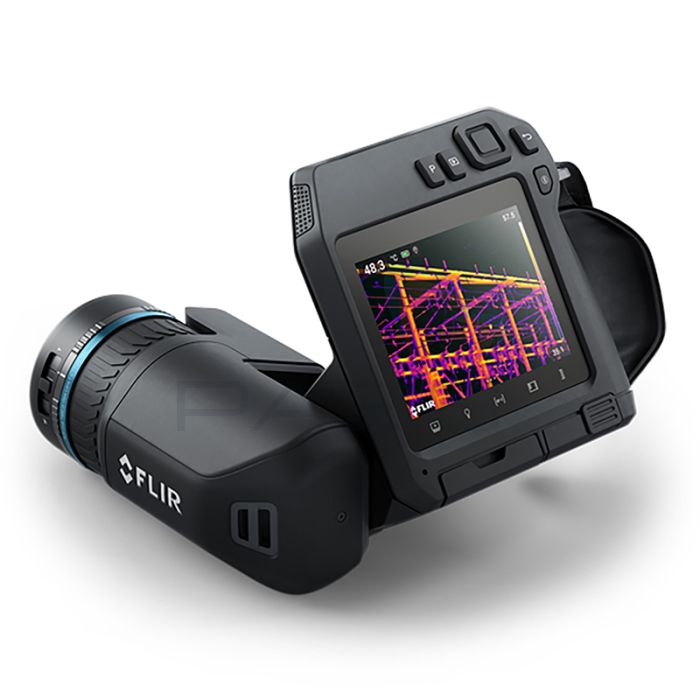

To enable inspection of hard-to-reach areas, the FLIR T560 Thermal Camera includes a 180° rotating block which allows the user to take measurements and capture images from any vantage point. The 180° rotating block is especially useful when inspecting overhead components.

Easy to Use

The FLIR T560 Thermal Camera’s rapid touchscreen display and two programmable buttons mean menus, folders and settings can be accessed quickly while in the field.

Furthermore, to streamline inspections, survey plans can be downloaded from the FLIR Thermal Studio Pro Software (FLIR Route Creator Plugin required) to the FLIR T560 Thermal Camera (FLIR Inspection Route firmware required).

The FLIR T560 Thermal Camera is a highly sensitive, ergonomic and adaptable thermal imager with advanced imaging technology. It is ideal for troubleshooting, diagnostic and inspection applications.

FLIR T560 Thermal Camera Key Features

  • High-resolution infrared imager with advanced imaging technology
  • Troubleshoot hot spots
  • Find hidden faults
  • Confirm repairs
  • Inspect power generation, manufacturing, and electrical distribution and transmission equipment
  • Can be purchased with a range of lens options
  • AutoCal™ optics means the camera can be used with a variety of lenses
  • AutoCal™ optics means lenses can be shared across a fleet of cameras
  • Capture radiometric thermal images
  • IR resolution: 640 x 480px
  • Provides 307 200 individual non-contact measurement points
  • FLIR Vision Processing technology
  • MSX mode
  • UltraMax function
  • Laser-assisted autofocus
  • 1-touch level/span
  • On-screen laser distance measurement
  • METERLiNK compatible
  • GPS
  • 4” LCD is 33% brighter and has a resolution that is four times greater than comparable cameras
  • 180° rotating block
  • Rapid-response touchscreen display
  • Two programmable buttons
  • Access menus, folders and settings quickly and easily
  • Download survey plans from the FLIR Thermal Studio Pro Software (FLIR Route Creator Plugin and FLIR Inspection Route camera firmware are required)
  • Highly sensitive, ergonomic and adaptable thermal imager with advanced thermal imaging technology
  • Ideal for troubleshooting, diagnostic and inspection applications

What’s Included?

Free Thermal Bundle

  • FLIR T560 Thermal Camera
  • Your Choice of Lens/ Lenses
  • 2x Batteries
  • Battery Charger
  • Hard Transport Case
  • Lanyards
  • Front Lens Cap
  • Power Supplies
  • 8GB SD Card
  • USB 2.0 A to USB Type-C Cable
  • USB Type C to HDMI Cable
  • USB Type-C to USB Type-C
  • FLIR Thermal Studio Pro Software (3 Month Subscription)
  • FLIR Route Plugin for the FLIR Thermal Studio Pro Software (3 Month Subscription)

FLIR T5XX-Series Thermal Cameras Technical Specifications

General T530 T540 T560
IR resolution 320 × 240
(76,800 pixels)
464 × 348
(161,472 pixels)
640 × 480
(307,200 pixels)
UltraMax®
resolution
307,200 effective
pixels
645,888 effective
pixels
1.2 MP effective pixels
Object temperature
range
-20°C to 120°C
(-4°F to 248°F)
0°C to 650°C
(32°F to 1202°F)
Optional Calibration:
300°C to 1200°C
(572°F to 2192°F)
-20°C to 120°C
(-4°F to 248°F)
0°C to 650°C
(32°F to 1202°F)
300°C to 1500°C
(572°F to 2732°F)
-20°C to 120°C
(-4°F to 248°F)
0°C to 650°C
(32°F to 1202°F)
300°C to 1500°C
(572°F to 2732°F)
Thermal lens options 6°, 14°, 24°, 42°, Dual FOV (14°+24°), 80° lenses
Detector type and pitch Uncooled microbolometer, 17 µm Uncooled microbolometer, 12 µm
Digital zoom 1-4x continuous 1-6x continuous 1-8x continuous
Common Features
Thermal sensitivity/NETD <30 mK @ 30°C/86°F (42° lens)
Spectral range 7.5 - 14.0 µm
Image frequency 30 Hz
Lens identification Automatic
F-number f/13.5 (6° lens), f/1.5 (14° lens), f/1.3/1.3 (14°/24° dual field-of-view lens),
f/1.3 (24° lens), f/1.1 (42° lens), f/1.3 (80° lens)
Focus Continuous with laser distance meter (LDM), one-shot LDM, one-shot
contrast, manual
Programmable buttons 2
Image Presentation and Modes
Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Digital camera 5 MP, with built-in LED photo/video lamp
Color palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava - each with
Histogram and Temperature Linear display
Image modes Infrared, visual, MSX®, Picture-in-Picture
Picture-in-picture  Resizable and movable
UltraMax Super-resolution process quadruples pixel count; activated in menu and processed in reporting software
Measurement Analysis
Accuracy, full range ±2°C (±3.6°F) or ±2% of reading
Spotmeter and area 3 ea. in live mode
Measurement presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Laser pointer Yes
Laser distance meter Yes; dedicated button
Lens protection Yes, lens cover included. Industrial protective lens window optional accessory
(PN: T300493ACC)
Annotations
Inspection routing Camera firmware option; file created in FLIR Thermal Studio Pro using FLIR Route Creator plug-in for baseline image comparison and image overlay guidance
Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Text Predefined list or touchscreen keyboard
Image sketch From touchscreen, on infrared image only
Distance, area measurement Yes; calculates area inside measurement box in m2 or ft2
METERLiNK Yes
Compass, GPS Yes; automatic GPS image tagging
Communications & Connections
Cloud services
(via Wi-Fi)
FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing
(Over The Air firmware update)
METERLiNK
(via Bluetooth)
Wireless conection to FLIR meters with METERLiNK
Image Storage
Storage Removable SD card; onboard FLIR Ignite cloud connectivity with Wi-Fi
Image file format Standard JPEG with measurement data included
Timelapse (Infrared) 10 sec to 24 hrs
Video Recording and Streaming
Radiometric IR video recording Real-time radiometric recording (.csq)
Non-radiometric IR or visual video H.264 to memory card
Radiometric IR video streaming Yes, over UVC or Wi-Fi
Non-radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi
MJPEG over UVC or Wi-Fi
Communication interfaces USB 2.0, Bluetooth, Wi-Fi
Video out DisplayPort over USB Type-C
Additional Data
Battery type Li-ion battery, charged in camera or on separate charger
Battery operating time Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Operating temperature range -15°C to 50°C (5°F to 122°F)
Shock/vibration/ encapsulation/
safety
25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
Weight/dimensions
without lens
1.3 kg (2.9 lbs), 140 × 201 × 84 mm (5.5 × 7.9 × 3.3 in)
