Hikmicro ALPEX A50T Digital Day/Night Vision Scope & Gryphon LRF Pro GQ50L Thermal Monocular Kit
- Gryphon Pro LRF GQ50L
- ALPEX A50T captures 2MP images in light conditions
- For day, night & low-light outdoor, hunting, & patrolling applications
SKU
HM-BUND-GQ50L
MPN
HM-BUND-GQ50L

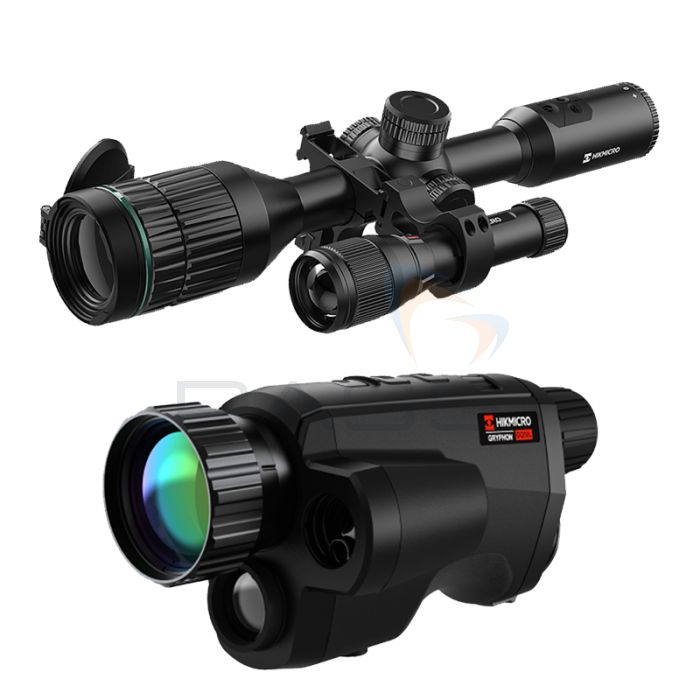

Suitable for patrolling, hunting, and other outdoor applications, this kit includes:
- Hikmicro ALPEX A50T Digital Day & Night Scope with Accessories
- Hikmicro Gryphon LRF Pro GQ50LThermal & Optical Monocular with Accessories

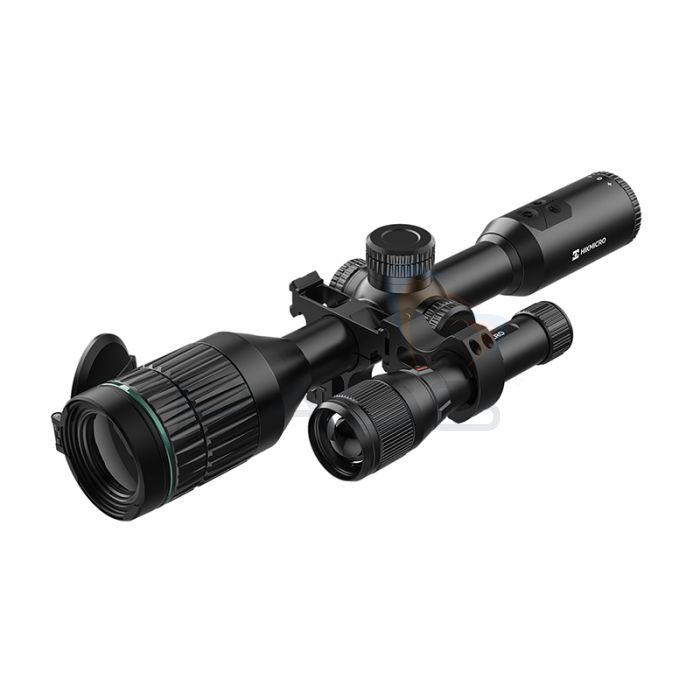

Hikmicro ALPEX A50T Digital Day & Night Scope Key Features
- Suitable for day-time, night-time, and low-light hunting
- A traditional, classic-style riflescope
- 30mm mount rings
- Detection range: 600m
- Multiple reticle profiles
- Freeze and Zoom functions
- 850nm IR torch
- Rechargeable battery
- Provides clear, detailed images with a 2MP resolution
- Works in light conditions as low as 0.001 Lux
- 1920 x 1080px 1/1.8-inch high-definition sensor
- 3D DNR image algorithm
- High SNR
- Purple fringing correction
- Image defogging technology
- Picture-in-Picture mode
- Record videos and images
- Send images and videos to the Hikmicro Sight App
Please click here to read more about the Hikmicro ALPEX A50T Digital Day & Night Scope.
Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular Key Features
- Handheld thermal imager
- 640 x 512px IR detector
- VOx 12µm imaging sensor
- 35mK thermal sensitivity
- Ideal for patrolling, law enforcement, search and rescue, and hiking applications
- Low light level optical detector with 1920 x 1080px resolution
- Bi-spectrum Fusion mode
- Image optimising algorithm
- Two replaceable, rechargeable batteries
- Built-in laser rangefinder with a maximum range of 600m and an accuracy of ±1m
Follow this link to learn more about the Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular.
What’s Included?
- Hikmicro ALPEX A50T Digital Day & Night Scope
- Type-C Cable
- CR123A Battery
- HM-3632DC Battery
- Battery Charger
- 850nm IR Torch
- IR Torch Bracket
- Bag
- Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular
Discontinued
Call 01642 265428 or complete the form:
Technical Information
Specification
Hikmicro ALPEX A50T Digital Day & Night Scope Technical Specifications
| Max. Resolution | 1920 × 1080 (2 MP) |
| Focal Length | 50 mm |
| Aperture | F1.2 |
| Magnification | 3.5x |
| Digital Zoom | 1×, 2×, 4× |
| Field of View | 7.7° × 5.8° |
| Micro Display | 0.39-inch, 1024×768 OLED |
| Image Mode | Day, Night |
| Internal Memory | 64GB |
| Operating Time | Up to 12 h |
| Detection Range | Day: 600m Night: 600m |
| Wavelength for IR Torch | 850 nm |
Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular Technical Specifications
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | <35 mK (@25 °C, F# = 1.2) |
| Lens (Focal Length) | 50 mm |
| Detection Range | 2600 m |
| Focus Mode | Manual |
| Field of View | 8.78° × 7.03° (H × V) |
| Min. Focusing Distance | 5 m |
| Aperture | F1.2 |
| Magnification | 2.9 |
| Digital Zoom | 1 ×, 2 ×, 4 ×, 8 × |
| Optical Module | |
| Image Sensor | 1/2” Progressive Scan CMOS |
| Focal Length | 22 mm |
| Wavelength | 400 nm to 1000 nm |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.001 Lux@F1.0 |
| Image Display | |
| Frame Frequency | 50 Hz |
| Display | 0.39 inch, OLED, 1024 × 768 |
| Image Mode | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Smart Function | |
| Hot Spot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Standby Mode | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Built-in Memory | 16 GB |
| Power Supply | |
| Battery Type | One 18650 battery |
| Battery Operating Time | 4.5 hours |
| Power | Removable Battery |
| General | |
| Protection Level | IP67 |
| Dimension | 87.2 mm × 73.3 mm × 183.6 mm |
| Weight | 548 g |
| Working Temperature | -30 to 55 °C |
| Eye-Relief | 19.5mm |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 600 m |
| Measurement Accuracy | ±1 m |
Document Downloads
Hikmicro Gryphon Pro LRF GQ50L Thermal & Optical Monocular Datasheet
Hikmicro ALPEX A50T Digital Day & Night Vision Scope Datasheet
Hikmicro Gryphon LRF Thermal & Optical Monocular Quick Start Guide
Hikmicro ALPEX A50T Digital Day & Night Vision Scope User Manual
Hikmicro Gryphon LRF Thermal & Optical Monocular User Manual
