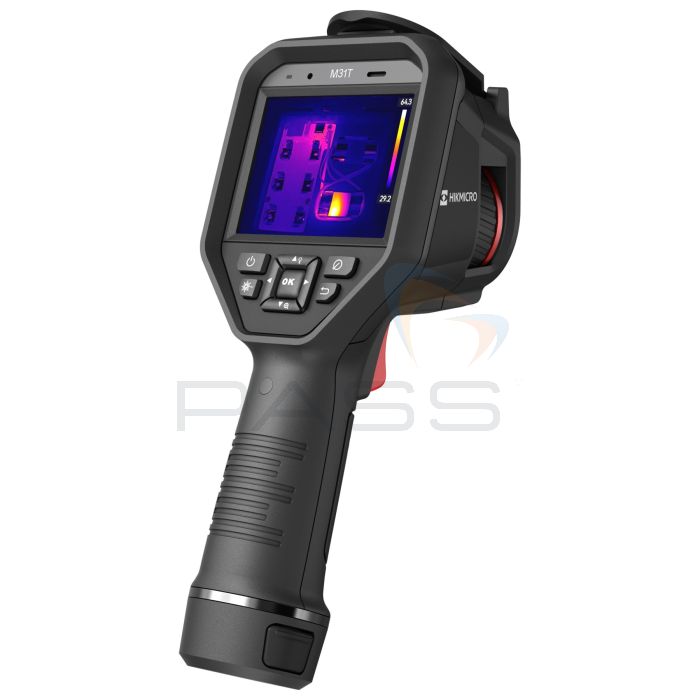

HikMicro M31T Wildlife Equine Thermal Camera
- Complete Image Annotations
- 1-Tap Level & Span
- 5 Image Modes
SKU
M31T
MPN
HM-TP23A-10QF/W-M31T
The HikMicro M31T is designed for veterinarians, wildlife professionals, and equine specialists. It has a 384 × 288 sensor with an accuracy of ±0.5°C and advanced calibration for skin surface imaging in ambient temperatures ranging from 5°C to 40°C.
The SuperIR technology delivers image upscaling by 4× and includes various viewing modes, including Thermal, Fusion, Picture-in-Picture (PIP), Visual, and Blending. A manual focus ring enables sharp imaging from 0.1 metres.
It is IP54-rated and has been drop-tested from a height of 2 meters. It offers up to 12 hours of runtime and has a laser pointer for precise target marking.
Additional capabilities include real-time annotations (voice, text, and QR notes), adjustable contrast modes (manual, auto, and one-tap), and connectivity via Wi-Fi to the HikMicro Viewer app or through a PC for collaboration with HikMicro Analyser software facilitates sharing and professional reporting.
Key Features
- Enhanced Image Quality with SuperIR
- Manual Focus
- Interchangeable Battery System
- Complete Image Annotations
- 1-Tap Level & Span
- 5 Image Modes
- Precise, Flexible, Stable Microscope Stand
- Rugged & Durable Design
- Laser Pointer
- HIKMICRO Viewer
- HIKIMICRO Analyzer
- High sensitivity thermal module with 384 x 288 resolution
- Supports multiple palettes
- High-quality optical module with 8 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Wide temperature measurement range: 5℃~40℃
- High temperature measurement accuracy: Max (±0.5°C), for the ambient temp. 15°C to 35°C
- 640 x 480 resolution, 3.5' LCD touch display
- LED light supplement makes the device a torch in required scenarios
- Supports 1.0x to 8.0x continuous digital zoom
What's Included?
- M31T camera
- Wrist strap
- Interchangeable Battery x2
- 64GB Micro SD Card
- Charging Base with Adaptor and Plugs (UK/US/AU/EU)
- 2-in-1 USB-C to USBCA Cable
- Hard Carrying Case
- Calibration Certificate
- Quick Start Guide
Technical Information
Specification
| IR Resolution | 384 x 288 (110,592 pixels) |
|---|---|
| SuperIR | 768 x 576 (442,368 pixels) |
| NETD | < 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 30Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 6.4mm |
| F-number | F1.0 |
| Field of View (FOV) | 41.1° x 30.5° |
| Spatial Resolution (IFOV) | 1.87 mrad |
| Min. Focus Distance | 0.1 m (0.32ft) |
| Focus Mode | Manual Focus |
| Visual Camera | 3264 x 2448 (8 MP) |
| Display | 640 x 480 Resolution, 3.5" LCD Touch Screen |
| Screen Brightness | Manual |
| Digital Zoom | 1.0x to 8.0x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Object Temperature Range | Range 5℃ to 40℃（41°F to 104°F) |
| Accuracy | Max (±0.5°C), for the ambient temp. 15°C to 35°C |
| Measurement Tools | Centre Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen |
| Image Storage Capacity | Approx. 100,000 Images (8MP) |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch |
| Video Storage Capacity | MP4 video max. 400h; Radiometric video max. 50h |
| Video File Format | MP4 video and radiometric video |
| Extendable Memory Card | Extendable 64 GB Micro SD Card |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| LED Light | Yes |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 4 hours fully charged |
| Power Saving Mode | Yes |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Safety | IEC 61010-1 |
| EMC | EN 301489-1, EN 301489-17, EN IEC 61000-6-2, EN IEC 61000-6-3，EN 61326-1 |
| Vibration | 2g, IEC 60068-2-6 |
| Shock | 25g, IEC 60068-2-27 |
| Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. |
| Working Temperature Range | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 720g (1.59 lb) |
| Dimension | 244 x 100 x 104 mm (9.6 x 3.9 x 4.1 in) |
| Tripod Mounting | UNC ¼”-20 |
Document Downloads
HikMicro M31T Wildlife Equine Thermal Camera Datasheet
Hikmicro M Series Handheld Thermal Camera Quick Start Guide
Hikmicro M Series Handheld Thermal Camera User Manual
Hikmicro M Series Handheld Thermal Camera Brochure
